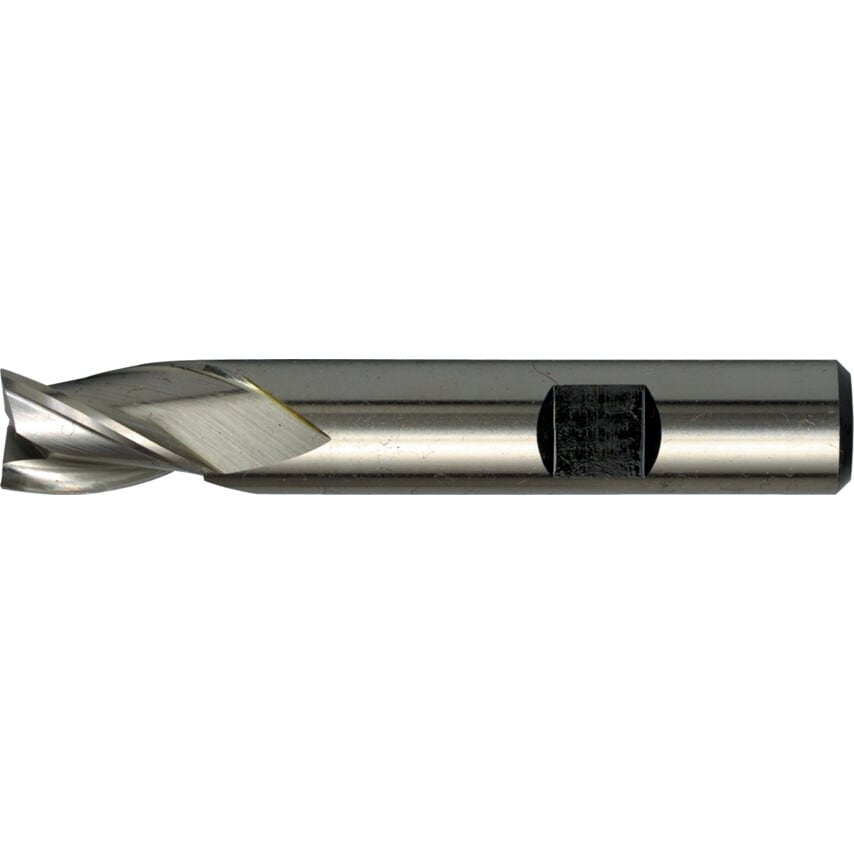

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Weldon Flat |
| Material | Cobalt High Speed Steel |
| Product Type | Slot Drills |
| Shank Diameter | 6mm |
| Number of Flutes | 3 |
| Overall Length | 52.0mm |
| Coolant Delivery | External |
| Series | 5 |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 5mm |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Flute Length | 8mm |
| System of Measurement | Metric |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Finish/Coating | Uncoated |
| Length Type | Short |
| Standards Met | DIN 327 | DIN 1835B |
| Cutter Style | Square End |
| Material Grade | M42 |
