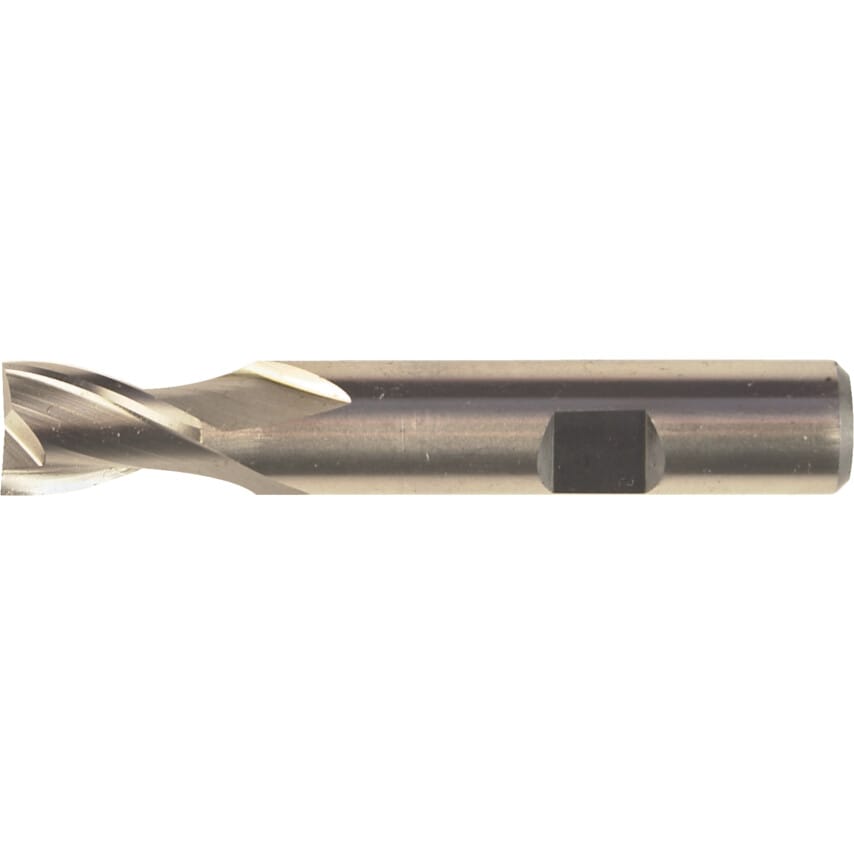

Series 01 - Short Series drills feature a HSS-Co 8% uncoated construction ideal for general production machining, offering both good wear resistance and tool hardness. 2 Flutes allow for efficient cutting performance coupled with excellent chip control.
Features and Benefits
HSS-Co construction for excellent durability and tool hardness
2 flutes for efficient cutting performance and and chip control
Ideal for general production machining for reduced downtime and tool replacement
Weldon shank for greater tool stability
Typical Applications
Centre cutting
Milling
General production machining
Standards
Dimensions to DIN 327
Weldon shank to DIN 1835B
| Flute Type | Helical |
| Overall Length | 79.0mm |
| Shank Diameter | 16mm |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | e8 |
| Flute Length | 19mm |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| System of Measurement | Metric |
| Number of Flutes | 2 |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Milling Cutter Type | Slot Drill |
| Standards Met | DIN 327 | DIN 1835B |
| Cutter Diameter | 16mm |
| Length Type | Short |
| Series | 1 |
