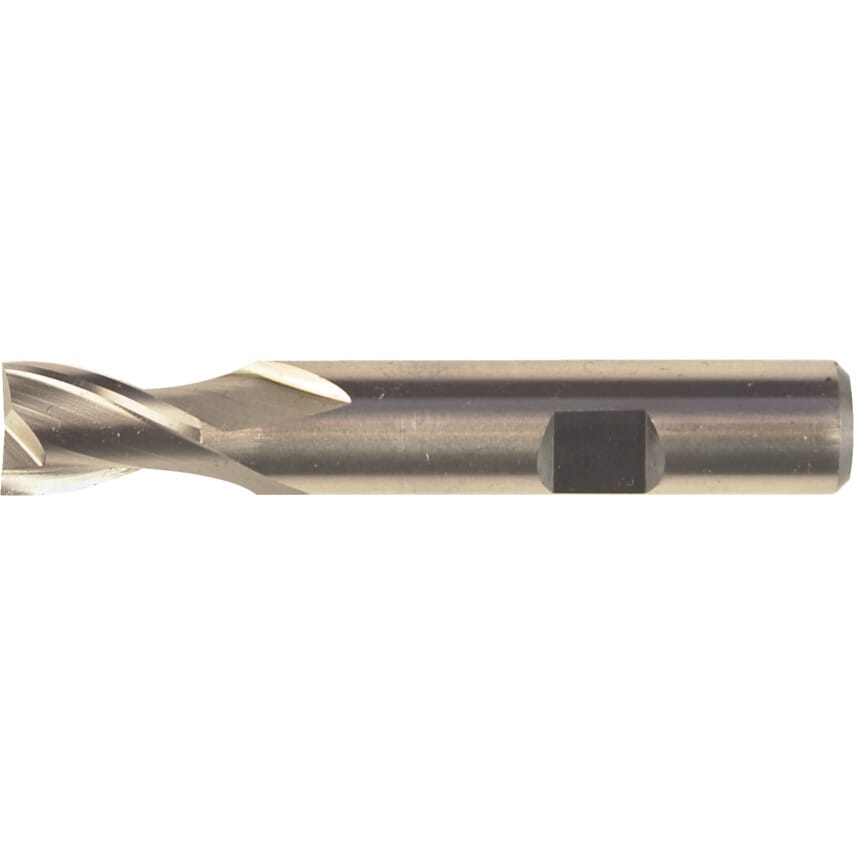

Series 01 - Short Series drills feature a HSS-Co 8% uncoated construction ideal for general production machining, offering both good wear resistance and tool hardness. 2 Flutes allow for efficient cutting performance coupled with excellent chip control.
Features and Benefits
HSS-Co construction for excellent durability and tool hardness
2 flutes for efficient cutting performance and and chip control
Ideal for general production machining for reduced downtime and tool replacement
Weldon shank for greater tool stability
Typical Applications
Centre cutting
Milling
General production machining
Standards
Dimensions to DIN 327
Weldon shank to DIN 1835B
| Flute Length | 10mm |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Overall Length | 60.0mm |
| Cutter Diameter | 7mm |
| Material | Cobalt High Speed Steel |
| Shank Diameter | 10mm |
| Cutter Diameter Tolerance | e8 |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Standards Met | DIN 327 | DIN 1835B |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Length Type | Short |
| Series | 1 |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | Slot Drill |
| Material Grade | M42 |
