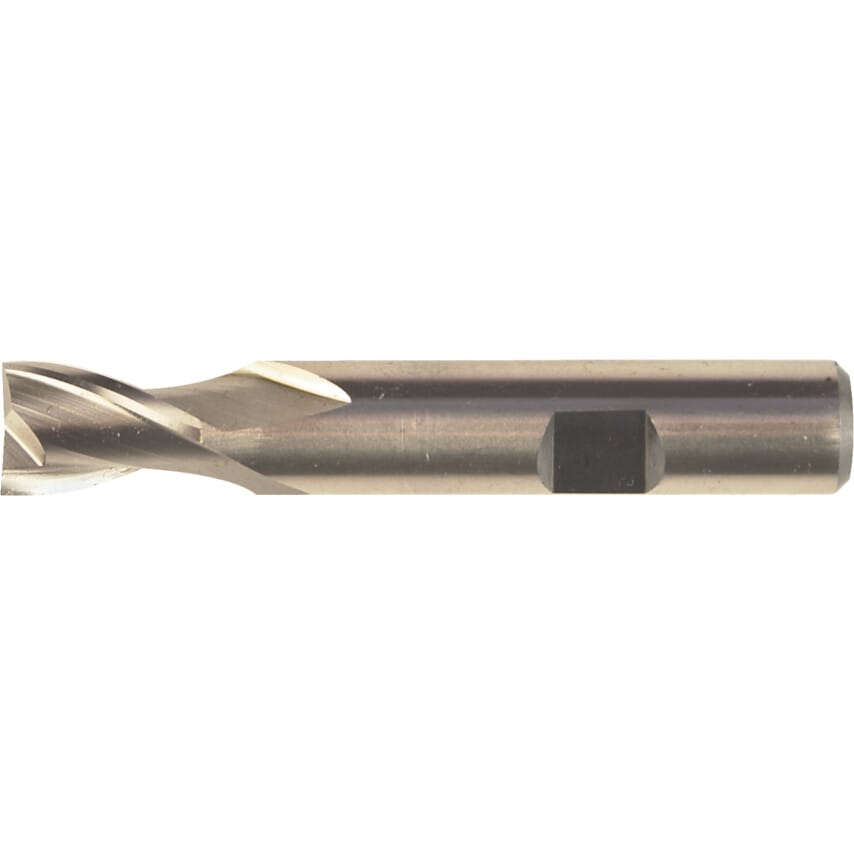

Series 01 - Short Series drills feature a HSS-Co 8% uncoated construction ideal for general production machining, offering both good wear resistance and tool hardness. 2 Flutes allow for efficient cutting performance coupled with excellent chip control.
Features and Benefits
HSS-Co construction for excellent durability and tool hardness
2 flutes for efficient cutting performance and and chip control
Ideal for general production machining for reduced downtime and tool replacement
Weldon shank for greater tool stability
Typical Applications
Centre cutting
Milling
General production machining
Standards
Dimensions to DIN 327
Weldon shank to DIN 1835B
| System of Measurement | Metric |
| Finish/Coating | Uncoated |
| Flute Length | 16mm |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| Cutting Direction | Right Hand |
| Overall Length | 73.0mm |
| Standards Met | DIN 327 | DIN 1835B |
| Cutter Diameter | 13mm |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Series | 1 |
| Coolant Delivery | External |
| Material Grade | M42 |
| Length Type | Short |
| Shank Type | Weldon Flat |
| Shank Diameter | 12mm |
| Plunge Type | Centre Cutting |
