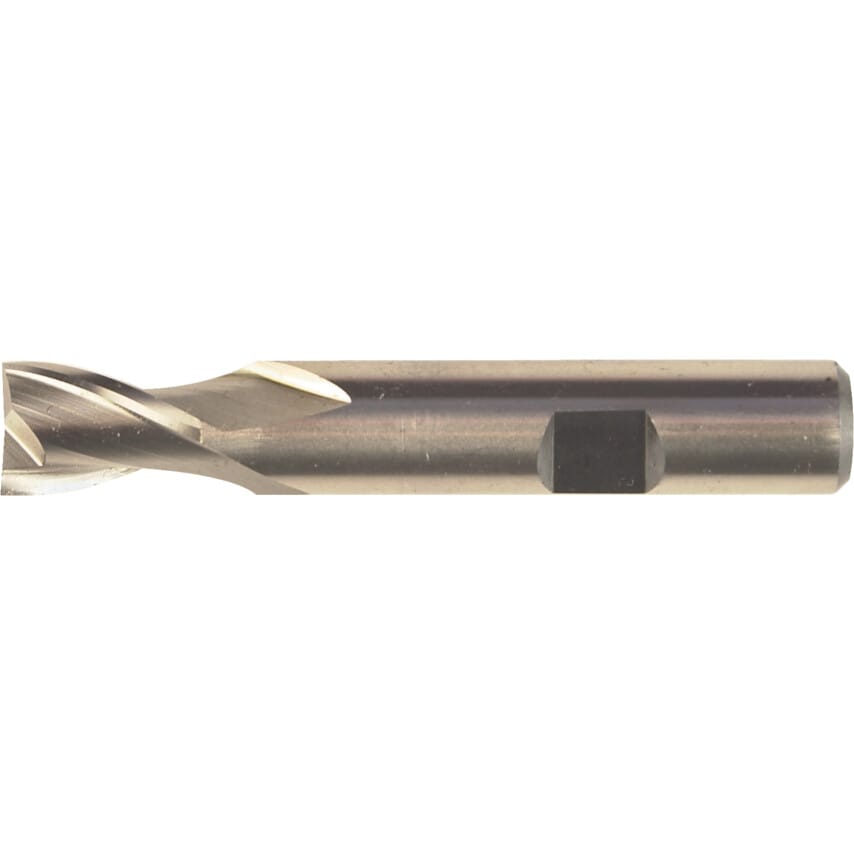

Series 01 - Short Series drills feature a HSS-Co 8% uncoated construction ideal for general production machining, offering both good wear resistance and tool hardness. 2 Flutes allow for efficient cutting performance coupled with excellent chip control.
Features and Benefits
HSS-Co construction for excellent durability and tool hardness
2 flutes for efficient cutting performance and and chip control
Ideal for general production machining for reduced downtime and tool replacement
Weldon shank for greater tool stability
Typical Applications
Centre cutting
Milling
General production machining
Standards
Dimensions to DIN 327
Weldon shank to DIN 1835B
| Shank Diameter | 25mm |
| Finish/Coating | Uncoated |
| Cutter Diameter Tolerance | e8 |
| Plunge Type | Centre Cutting |
| Length Type | Short |
| Cutting Direction | Right Hand |
| Overall Length | 102.0mm |
| Series | 1 |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Flute Length | 26mm |
| Cutter Diameter | 25mm |
| Number of Flutes | 2 |
| Flute Type | Helical |
| Coolant Delivery | External |
| Standards Met | DIN 327 | DIN 1835B |
