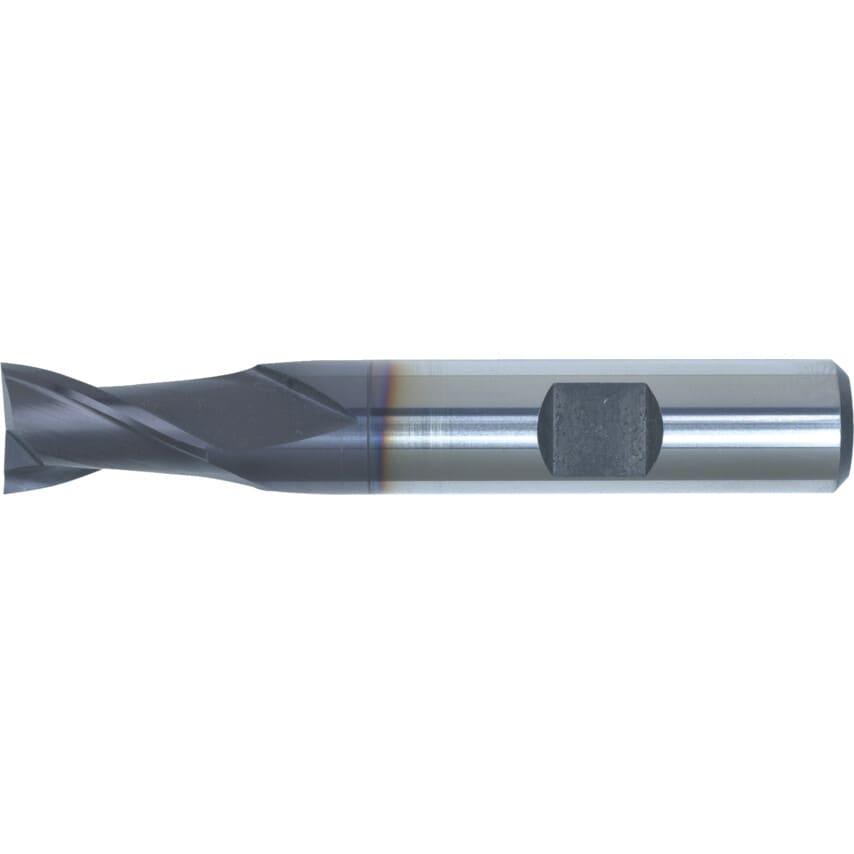

Series 01 - Short Series, TiALN Coated
Dimensions to DIN 327. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material Grade | M42 |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Length Type | Short |
| Standards Met | DIN 327 | DIN 1835B |
| Shank Type | Weldon Flat |
| Finish/Coating | TiAlN |
| Material | Cobalt High Speed Steel |
| Series | 01 |
| Overall Length | 79.0mm |
| Shank Diameter | 16.0mm |
| End Mill Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Milling Cutter Type | Slot Drill |
| Flute Length | 19.0mm |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| System of Measurement | Metric |
| Cutter Diameter | 18.0mm |
