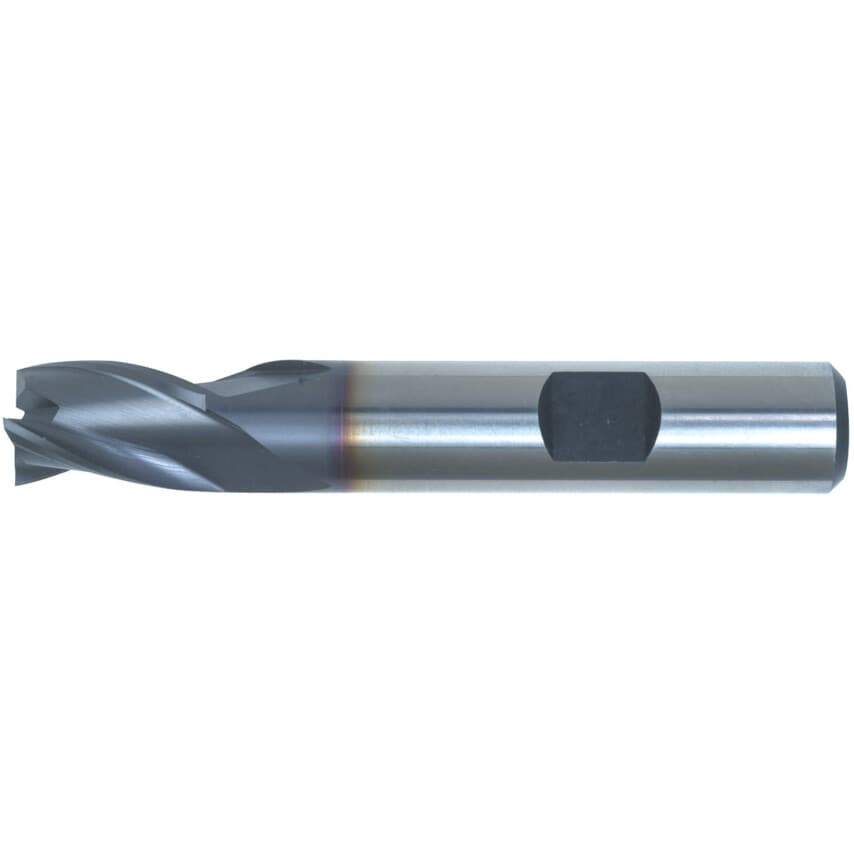

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Style | Square End |
| Material Grade | M42 |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Standards Met | DIN 327 | DIN 1835B |
| Number of Flutes | 3 |
| Series | 5 |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 14mm |
| Shank Type | Weldon Flat |
| Finish/Coating | TiCN |
| Flute Length | 16mm |
| Length Type | Short |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Shank Diameter | 12mm |
| Overall Length | 73.0mm |
| Milling Cutter Type | Slot Drill |
