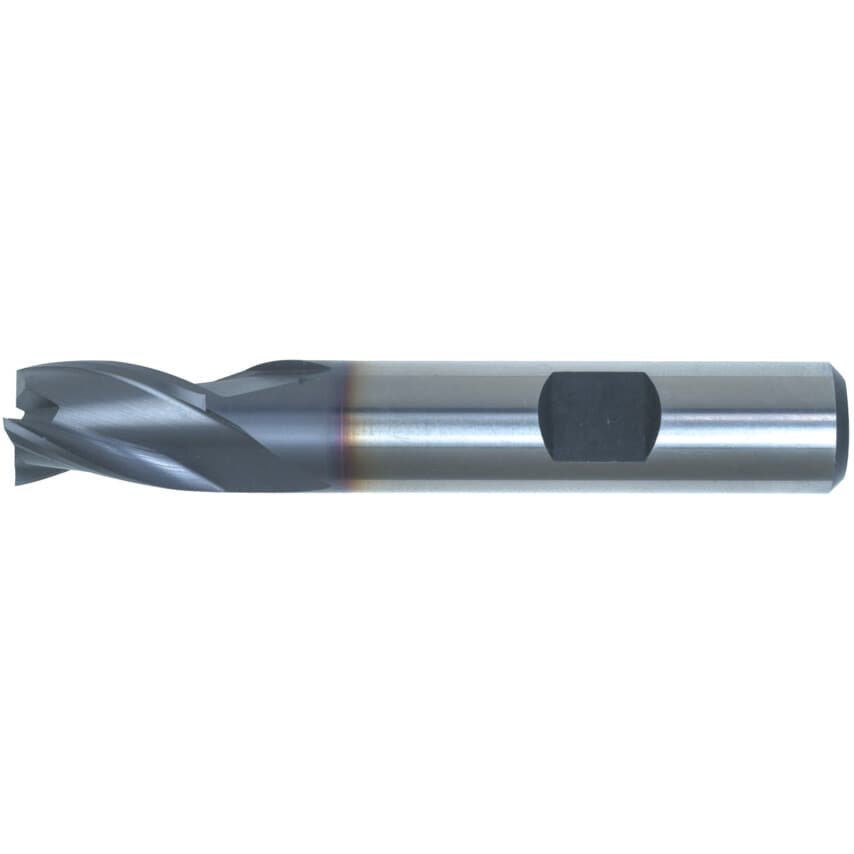

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Finish/Coating | TiCN |
| Milling Cutter Type | Slot Drill |
| Series | 5 |
| Shank Diameter | 16mm |
| Cutter Diameter | 16mm |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Material Grade | M42 |
| System of Measurement | Metric |
| Length Type | Short |
| Standards Met | DIN 327 | DIN 1835B |
| Plunge Type | Centre Cutting |
| Cutter Diameter Tolerance | e8 |
| Shank Type | Weldon Flat |
| Flute Length | 19mm |
| Overall Length | 79.0mm |
| Shank Diameter Tolerance | H6 |
