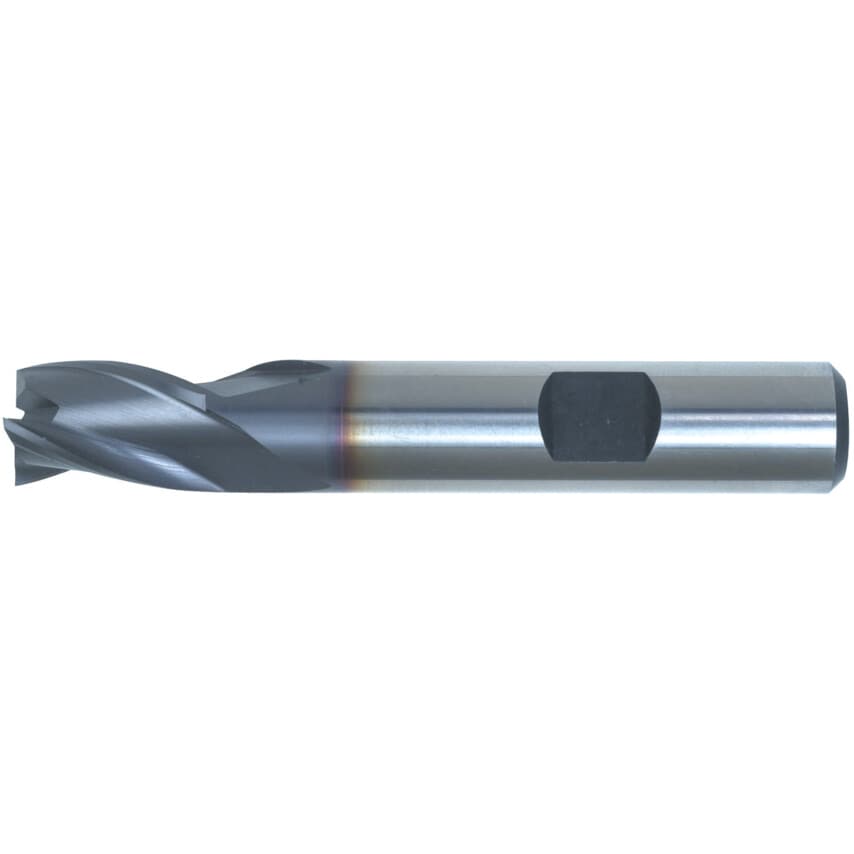

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Type | Helical |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Shank Type | Weldon Flat |
| Series | 5 |
| Length Type | Short |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Cutter Diameter Tolerance | e8 |
| End Mill Type | Slot Drill |
| Standards Met | DIN 327 | DIN 1835B |
| Overall Length | 48.0mm |
| Cutter Diameter | 2mm |
| Shank Diameter | 6mm |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Square End |
| Finish/Coating | TiCN |
