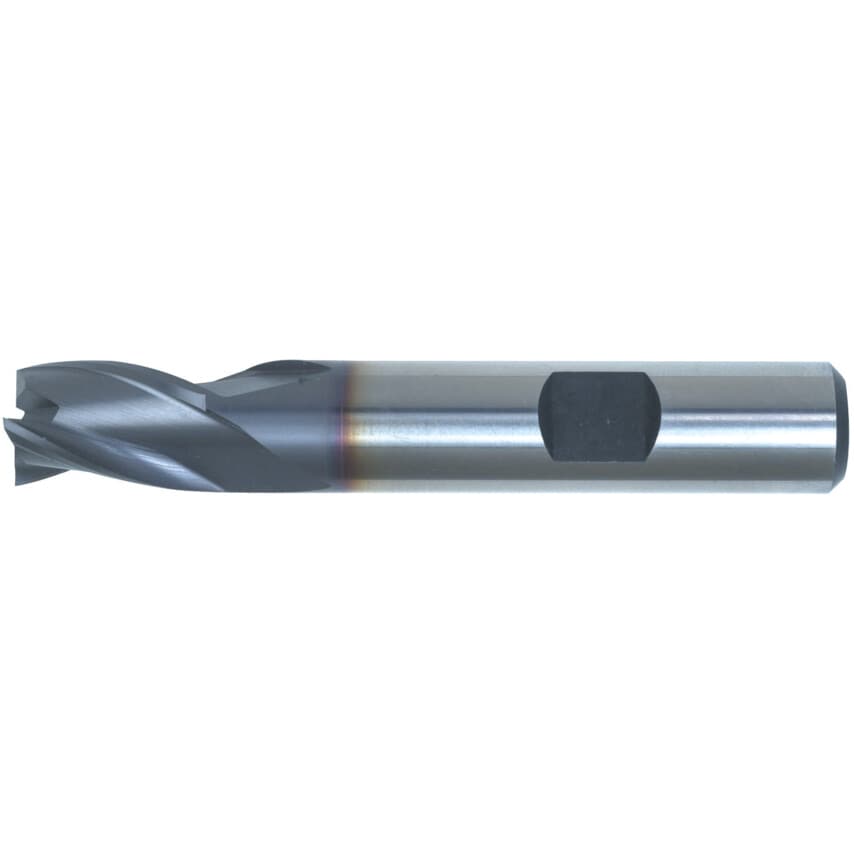

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Type | Helical |
| Overall Length | 52.0mm |
| Cutter Style | Square End |
| Milling Cutter Type | Slot Drill |
| Material Grade | M42 |
| Cutter Diameter | 5mm |
| Coolant Delivery | External |
| Standards Met | DIN 327 | DIN 1835B |
| Series | 5 |
| Finish/Coating | TiCN |
| Shank Diameter Tolerance | H6 |
| Shank Type | Weldon Flat |
| Flute Length | 8mm |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | e8 |
| Material | Cobalt High Speed Steel |
| Length Type | Short |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Shank Diameter | 6mm |
