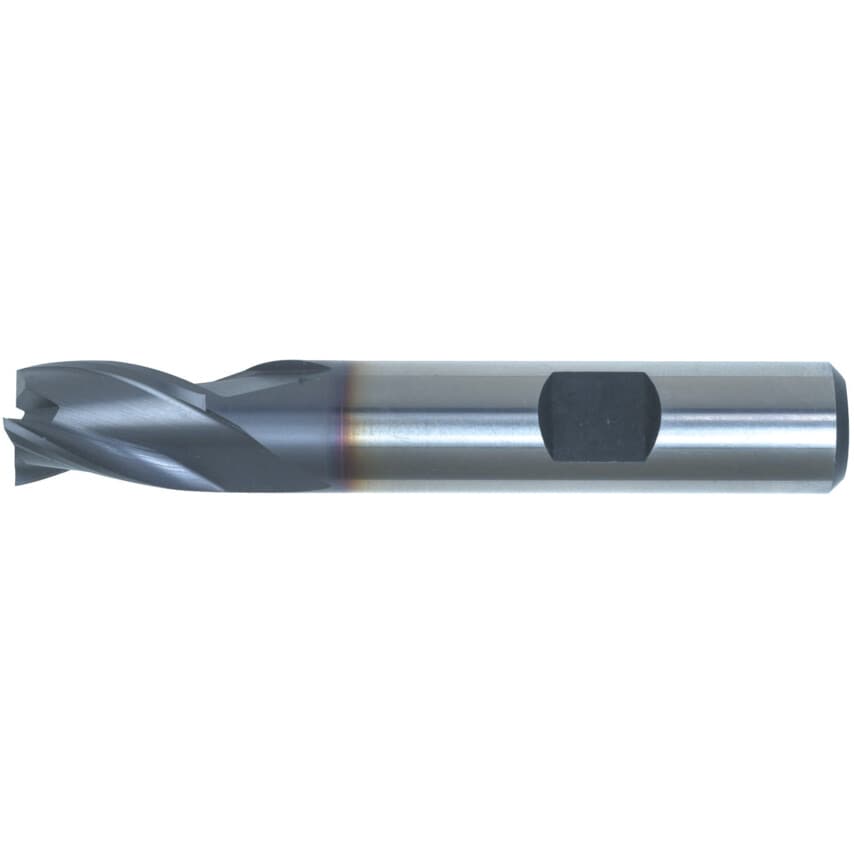

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 7mm |
| Shank Diameter | 10mm |
| Material Grade | M42 |
| Finish/Coating | TiCN |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Shank Type | Weldon Flat |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Flute Length | 10mm |
| Standards Met | DIN 327 | DIN 1835B |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Series | 5 |
| Length Type | Short |
| Milling Cutter Type | Slot Drill |
| System of Measurement | Metric |
| Overall Length | 60.0mm |
| Flute Type | Helical |
