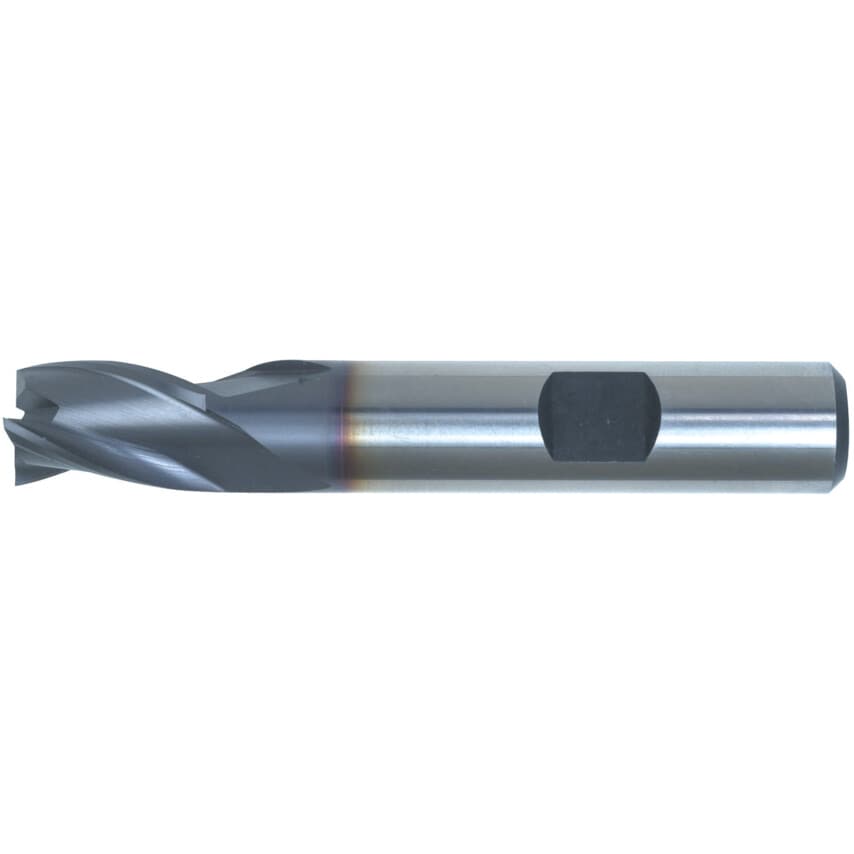

Series 05 - Short Series, TiCN Coated
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Overall Length | 61.0mm |
| Standards Met | DIN 327 | DIN 1835B |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Length Type | Short |
| End Mill Type | Slot Drill |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| Material Grade | M42 |
| Series | 5 |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 10mm |
| Finish/Coating | TiCN |
| Flute Length | 11mm |
| Shank Type | Weldon Flat |
| Cutter Diameter | 8mm |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| Number of Flutes | 3 |
