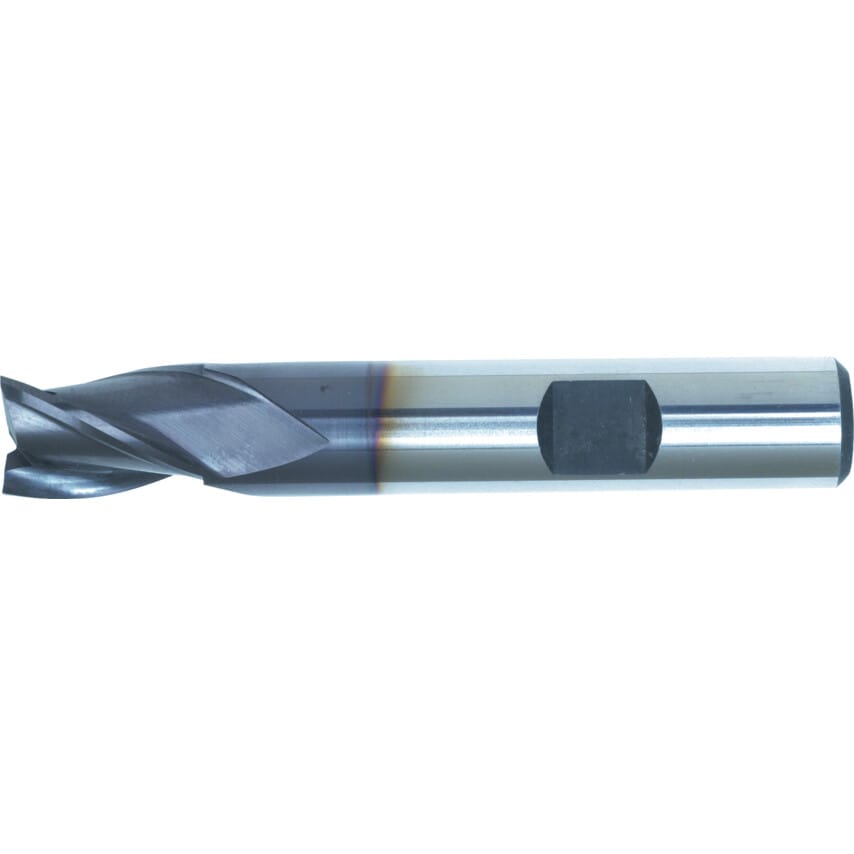

Series 05 - Short Series, TiALN Coated
Dimensions to DIN 327. Centre cutting. Weldon flatted shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 327 | DIN 1835B |
| Cutter Diameter | 8mm |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| Finish/Coating | TiAlN |
| Material Grade | M42 |
| Length Type | Short |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Shank Type | Weldon Flat |
| Series | 5 |
| Cutter Style | Square End |
| End Mill Type | Slot Drill |
| System of Measurement | Metric |
| Shank Diameter | 10mm |
| Milling Cutter Type | Slot Drill |
| Flute Length | 11mm |
| Overall Length | 61.0mm |
| Cutting Direction | Right Hand |
