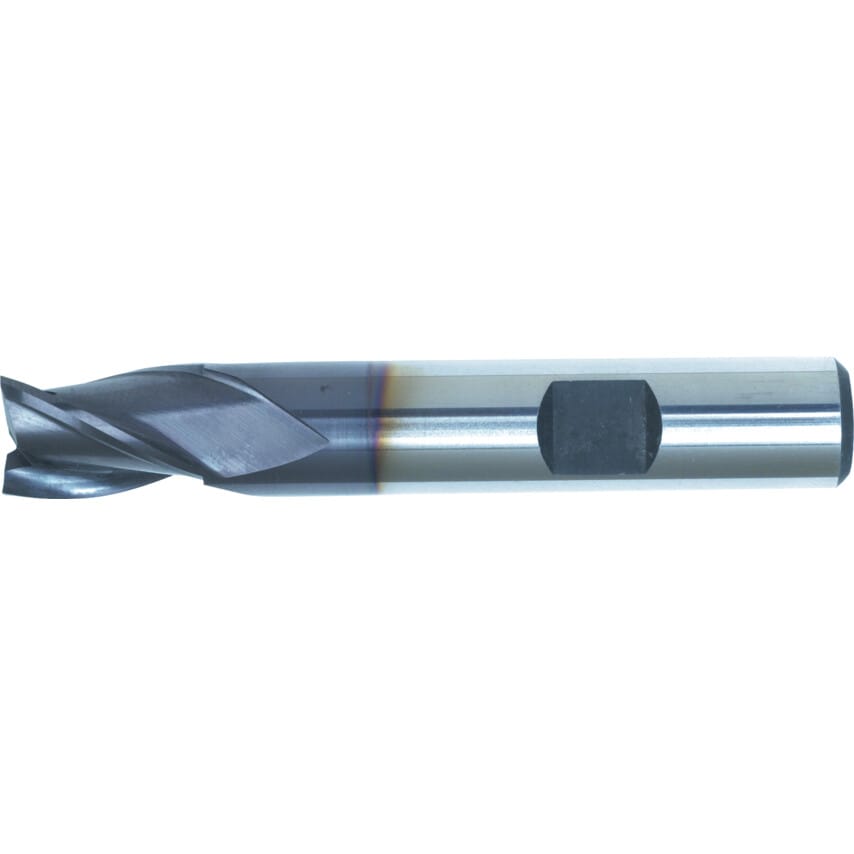

Series 05 - Short Series, TiALN Coated
Dimensions to DIN 327. Centre cutting. Weldon flatted shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter Tolerance | e8 |
| Flute Length | 16mm |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Material Grade | M42 |
| Length Type | Short |
| Standards Met | DIN 327 | DIN 1835B |
| Shank Diameter | 122mm |
| Number of Flutes | 3 |
| Cutter Diameter | 12mm |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Shank Diameter Tolerance | H6 |
| Overall Length | 63.0mm |
| Series | 5 |
| Milling Cutter Type | Slot Drill |
| Finish/Coating | TiAlN |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| Flute Type | Helical |
| Product Type | Slot Drills |
