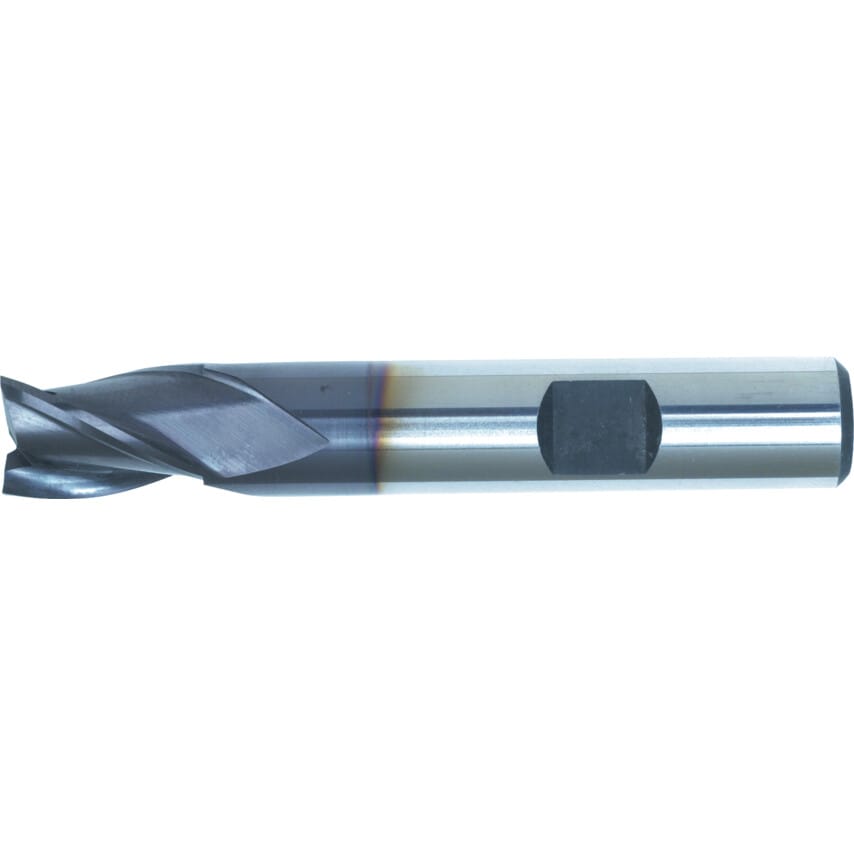

Series 05 - Short Series, TiALN Coated
Dimensions to DIN 327. Centre cutting. Weldon flatted shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Style | Square End |
| Cutter Diameter | 3mm |
| Finish/Coating | TiAlN |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | e8 |
| Plunge Type | Centre Cutting |
| Shank Diameter | 6mm |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Number of Flutes | 3 |
| Overall Length | 49.0mm |
| Material Grade | M42 |
| Milling Cutter Type | Slot Drill |
| Series | 5 |
| Flute Type | Helical |
| Standards Met | DIN 327 | DIN 1835B |
| Length Type | Short |
| Flute Length | 5mm |
