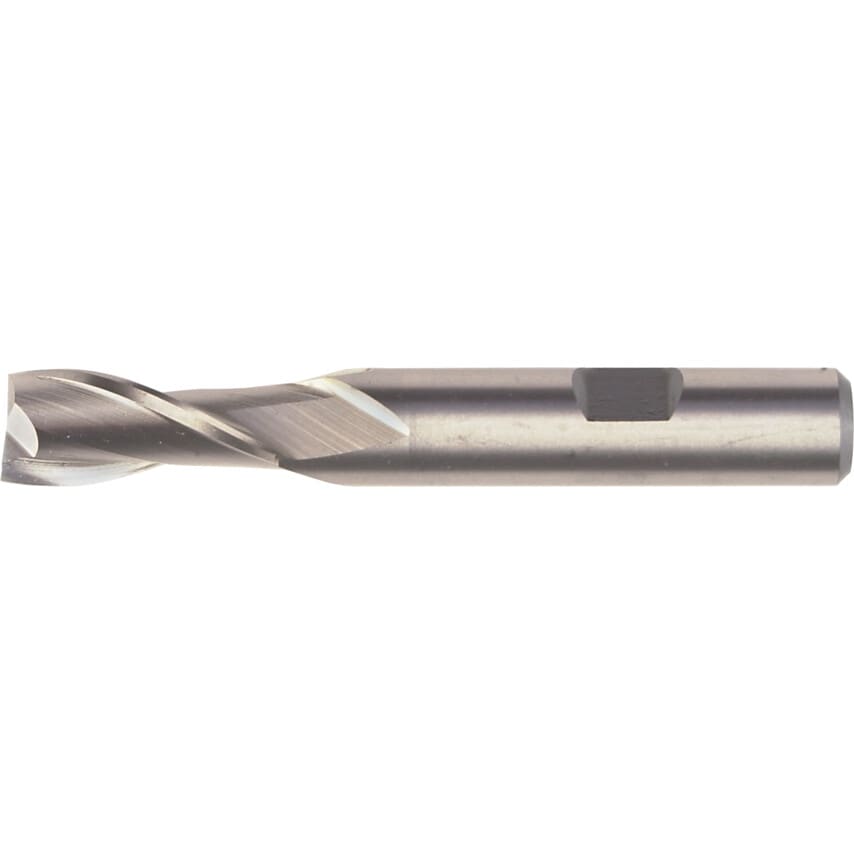

Series 02 - Regular Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter | 12.0mm |
| Cutter Style | Square End |
| Product Type | Slot Drills |
| Cutting Direction | Right Hand |
| Overall Length | 83.0mm |
| Number of Flutes | 2 |
| Series | 2 |
| Flute Length | 26.0mm |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Shank Type | Weldon Flat |
| Finish/Coating | Uncoated |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Material Grade | M42 |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Cutter Diameter | 14.0mm |
| Standards Met | DIN 844 | DIN 1835B |
