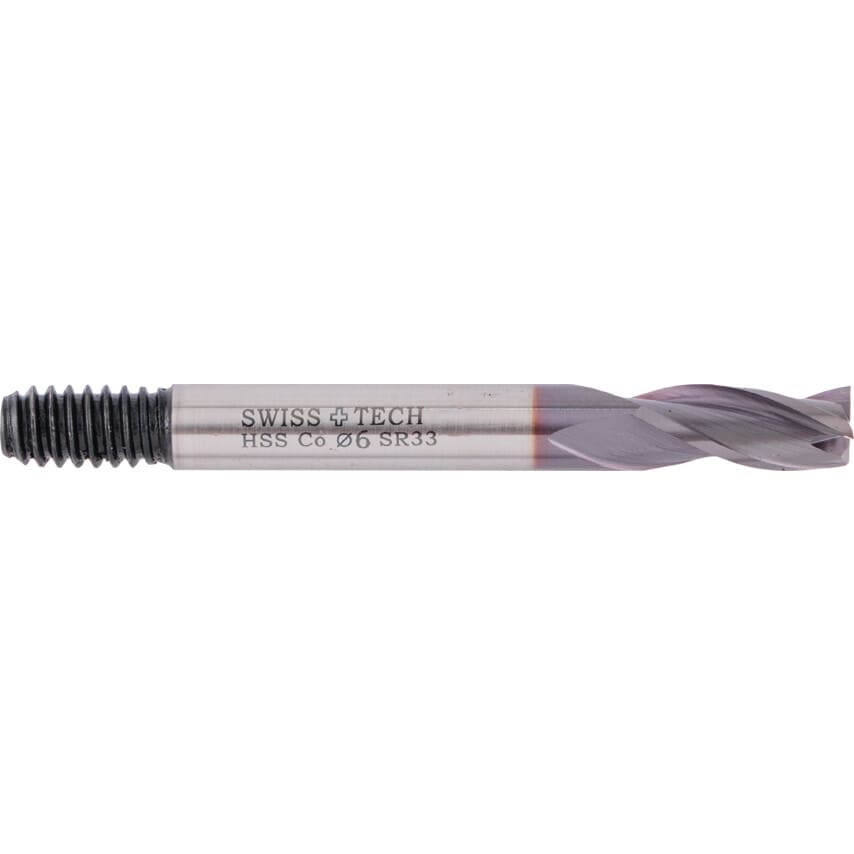

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Type | Helical |
| Length Type | Regular |
| Cutter Diameter Tolerance | e8 |
| Standards Met | DIN 844 | DIN 1835D |
| Shank Type | Threaded |
| Flute Length | 13.0mm |
| Finish/Coating | TiCN |
| Cutter Style | Square End |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Shank Diameter | 6.0mm |
| Cutter Diameter | 6.0mm |
| Product Type | Slot Drills |
| Series | 33 |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Overall Length | 57.0mm |
| Material | Cobalt High Speed Steel |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
