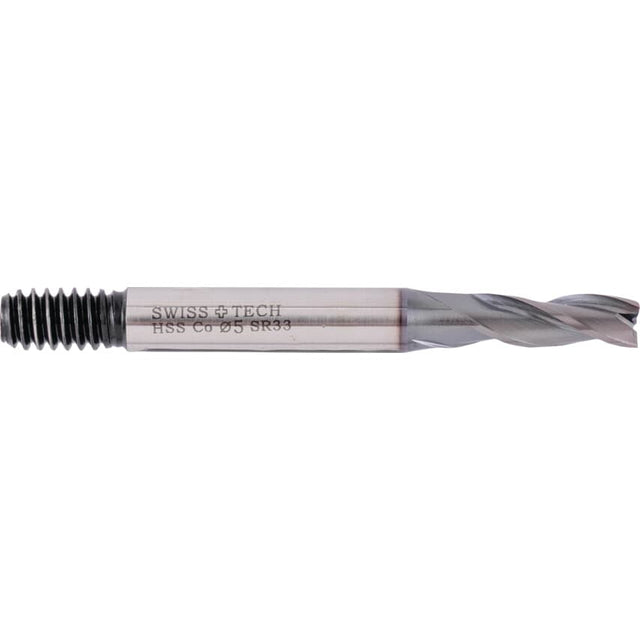

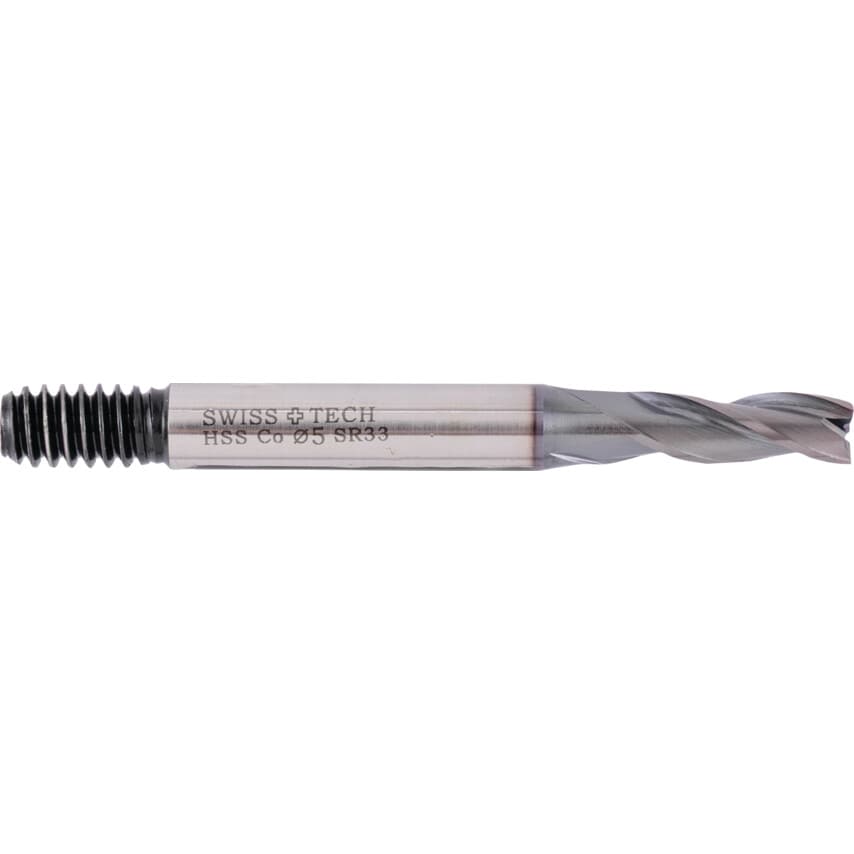

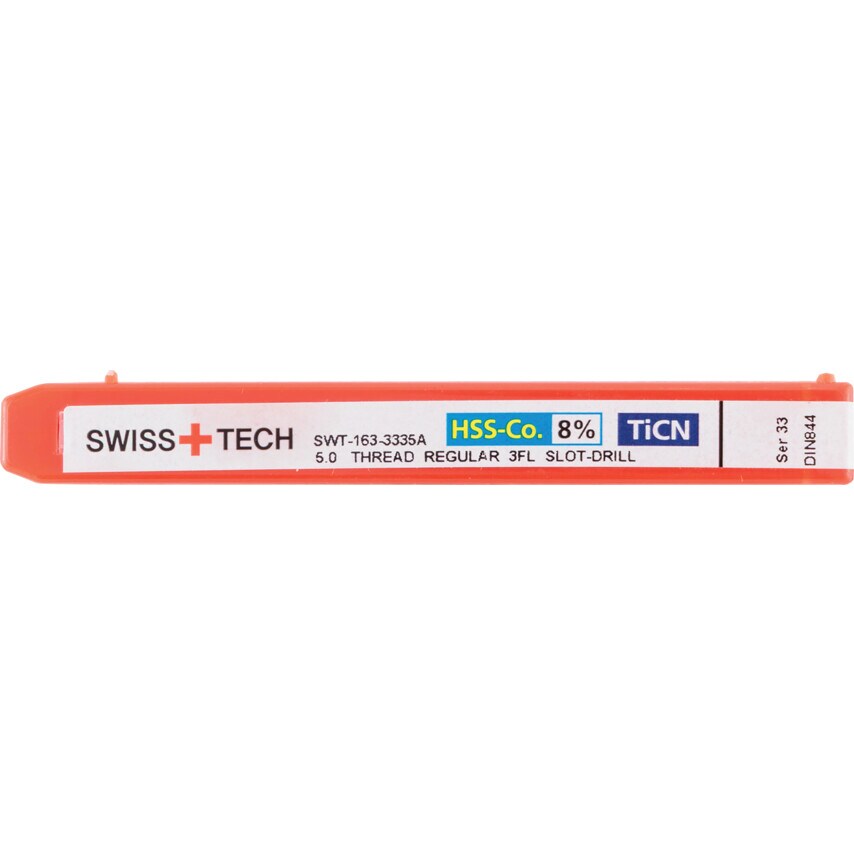

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Finish/Coating | TiCN |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Flute Length | 13.0mm |
| Standards Met | DIN 844 | DIN 1835D |
| Flute Type | Helical |
| Series | 33 |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | e8 |
| Plunge Type | Centre Cutting |
| Shank Diameter | 6.0mm |
| Overall Length | 57.0mm |
| Product Type | Slot Drills |
| Cutter Diameter | 5.0mm |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Shank Type | Threaded |
| Milling Cutter Type | Slot Drill |
| Length Type | Regular |
