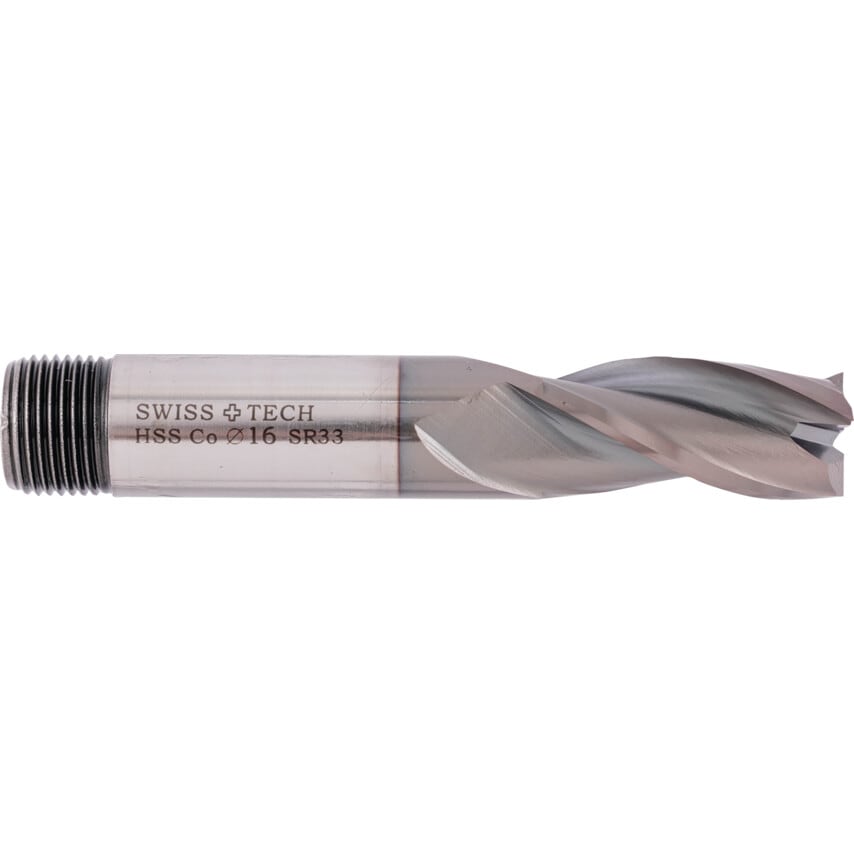

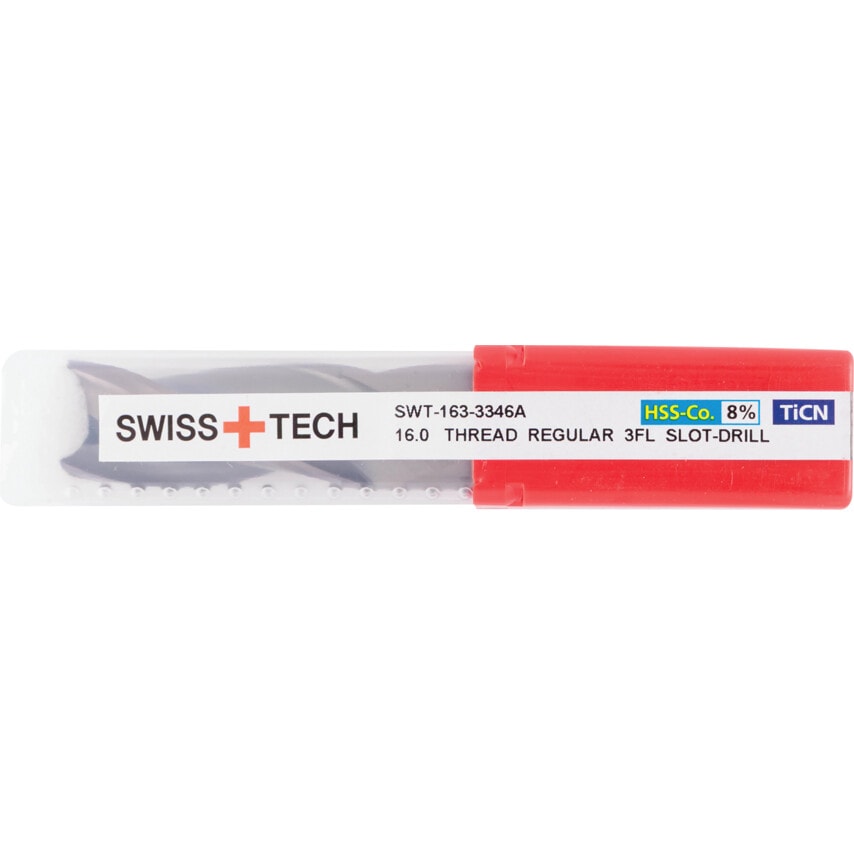

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Type | Helical |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Material Grade | M42 |
| Cutter Diameter | 16.0mm |
| End Mill Type | Slot Drill |
| Length Type | Regular |
| Shank Diameter | 16.0mm |
| Number of Flutes | 3 |
| Cutter Diameter Tolerance | e8 |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Standards Met | DIN 844 | DIN 1835D |
| Coolant Delivery | External |
| Overall Length | 92.0mm |
| Finish/Coating | TiCN |
| Material | Cobalt High Speed Steel |
| Series | 33 |
| Plunge Type | Centre Cutting |
| Product Type | Slot Drills |
| Milling Cutter Type | Slot Drill |
| Flute Length | 32.0mm |
| Shank Type | Threaded |
