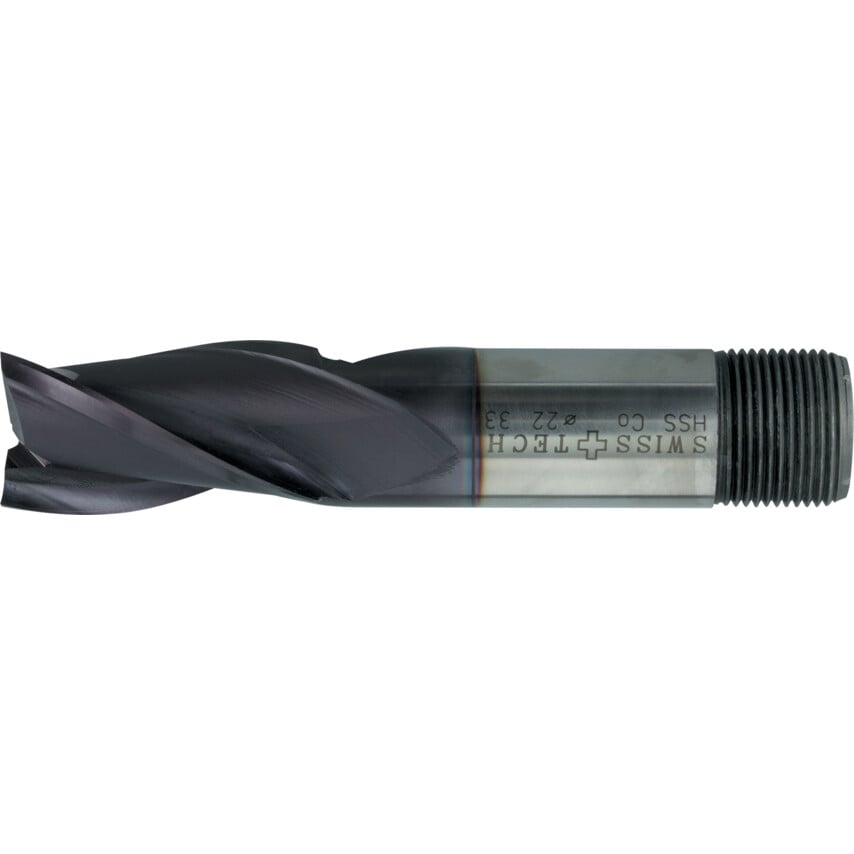

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Series | 33 |
| Cutter Diameter | 20.0mm |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| Shank Type | Threaded |
| Shank Diameter | 20.0mm |
| Overall Length | 104.0mm |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Length Type | Regular |
| Standards Met | DIN 844 | DIN 1835D |
| System of Measurement | Metric |
| Flute Length | 38.0mm |
| Flute Type | Helical |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Finish/Coating | TiCN |
| Product Type | Slot Drills |
