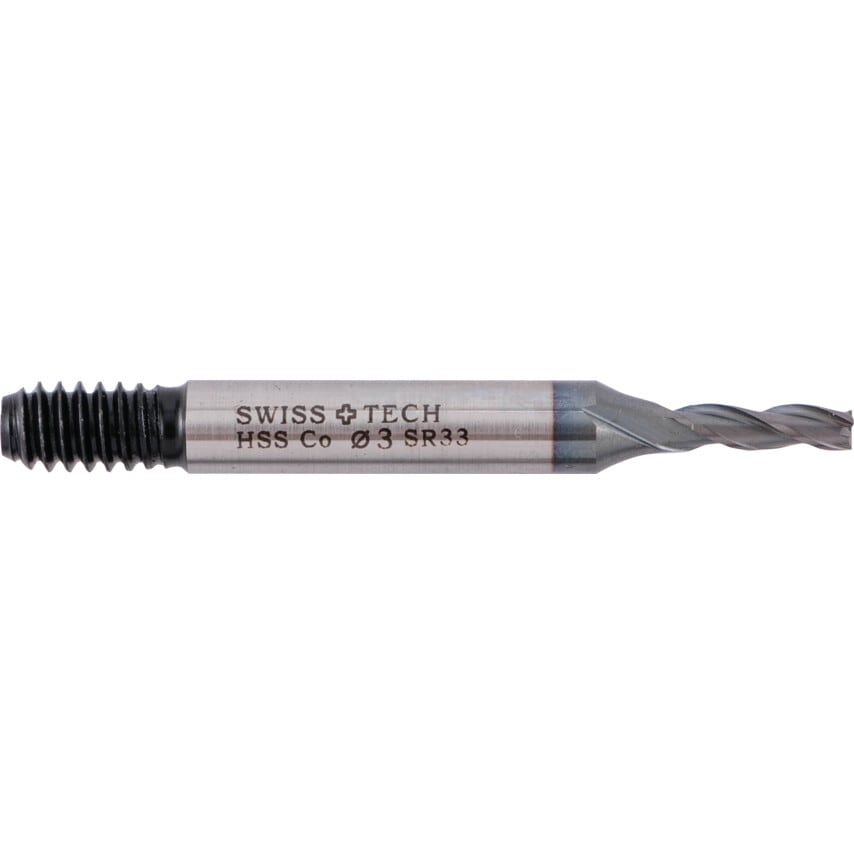

Series 33 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| Series | 33 |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Finish/Coating | TiCN |
| Shank Type | Threaded |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length | 52.0mm |
| Flute Length | 8.0mm |
| Material Grade | M42 |
| Shank Diameter | 6.0mm |
| Standards Met | DIN 844 | DIN 1835D |
| Number of Flutes | 3 |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 3.0mm |
