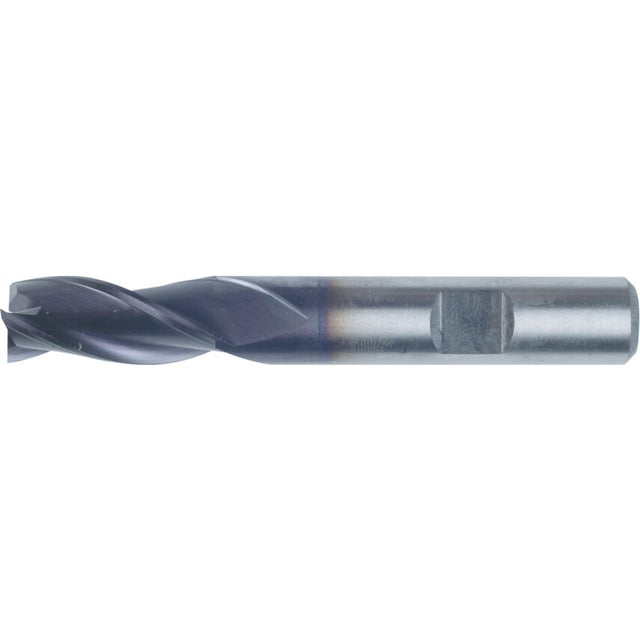

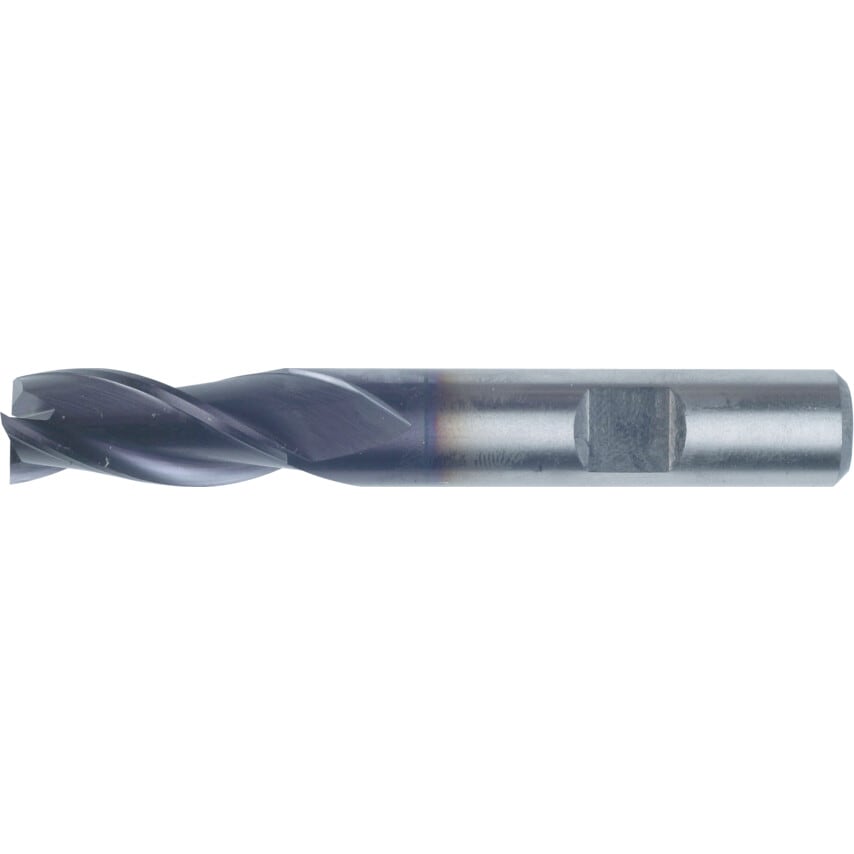

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter Tolerance | e8 |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| Plunge Type | Centre Cutting |
| Shank Diameter | 12.0mm |
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 3 |
| Material Grade | M42 |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| Coolant Delivery | External |
| Finish/Coating | TiAlN |
| Cutter Diameter | 12.0mm |
| Series | 6 |
| Overall Length | 83.0mm |
| Flute Length | 26.0mm |
| Standards Met | DIN 844 | DIN 1835B |
| Length Type | Regular |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Milling Cutter Type | Slot Drill |
