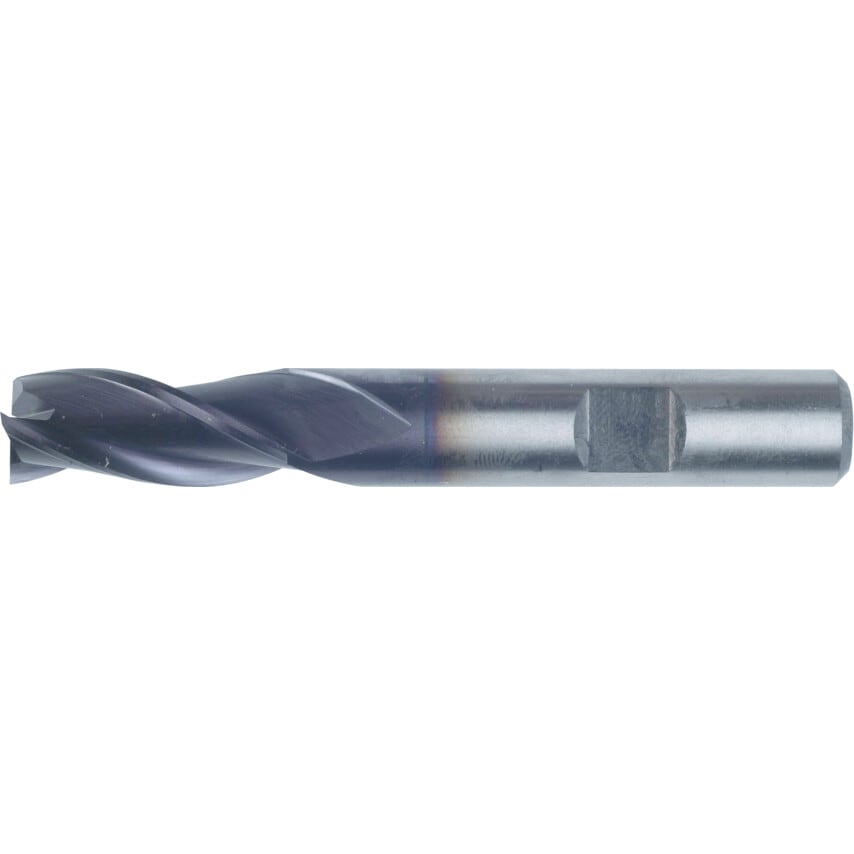

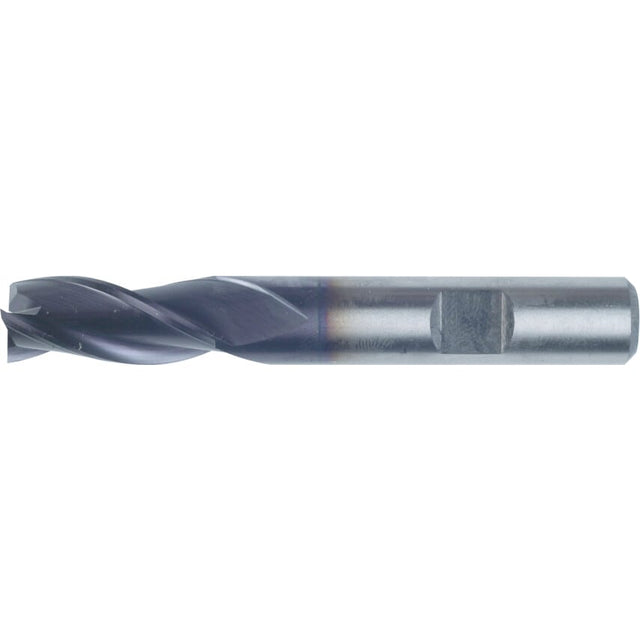

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Standards Met | DIN 844 | DIN 1835B |
| System of Measurement | Metric |
| Flute Type | Helical |
| Series | 6 |
| Material Grade | M42 |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Number of Flutes | 3 |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Overall Length | 104.0mm |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | TiAlN |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter | 20.0mm |
| Shank Diameter | 20.0mm |
| Flute Length | 38.0mm |
| Shank Type | Weldon Flat |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
