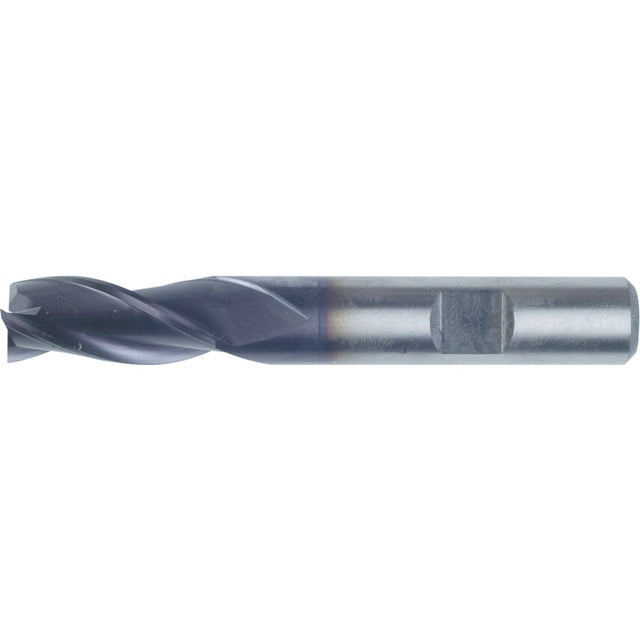

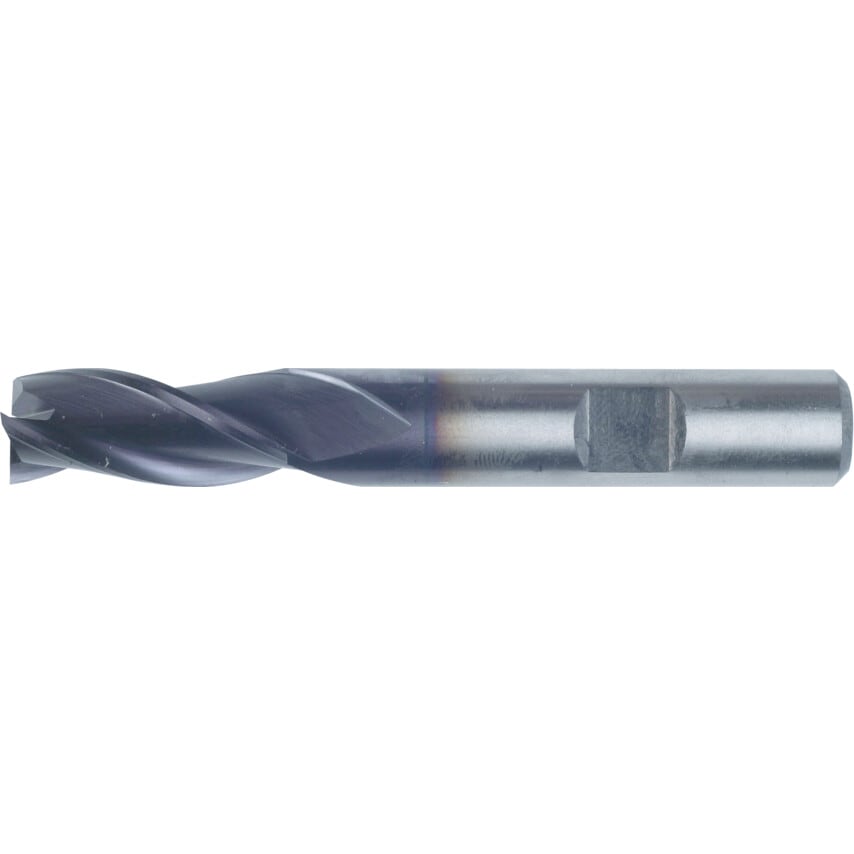

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Overall Length | 92.0mm |
| Shank Type | Weldon Flat |
| Finish/Coating | TiAlN |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter | 16.0mm |
| Series | 6 |
| Cutting Direction | Right Hand |
| Material Grade | M42 |
| Cutter Diameter | 16.0mm |
| Flute Length | 32.0mm |
| Length Type | Regular |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835B |
| Product Type | Slot Drills |
| System of Measurement | Metric |
| Flute Type | Helical |
| Material | Cobalt High Speed Steel |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
