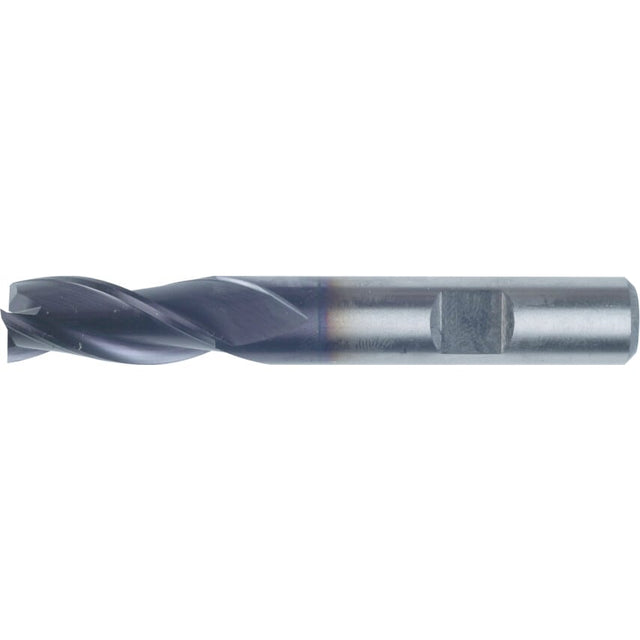

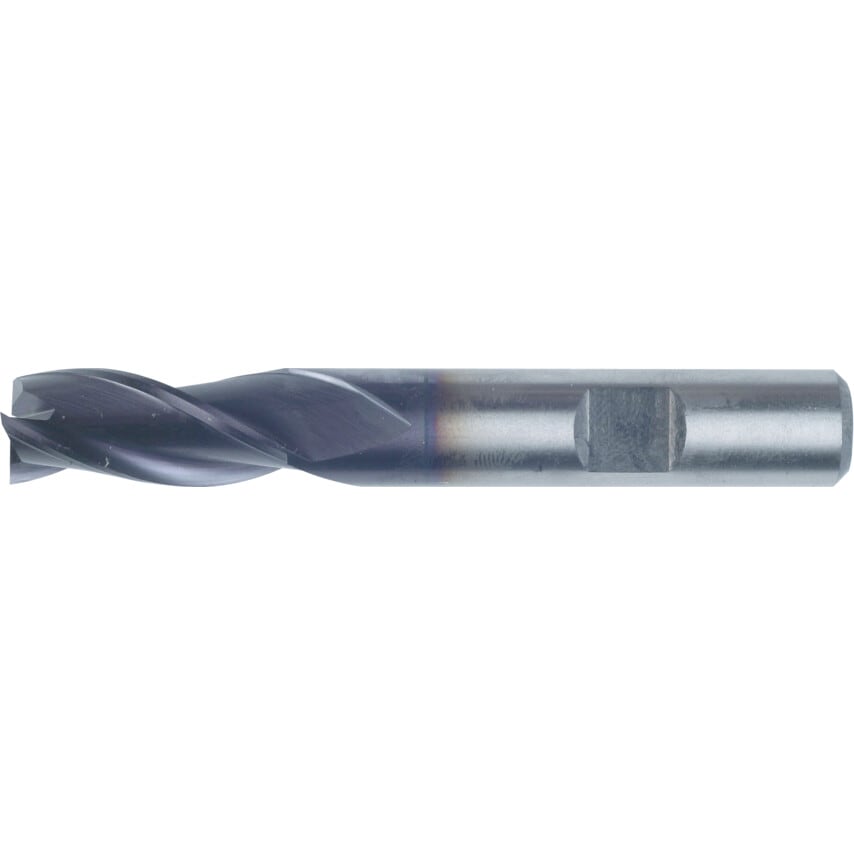

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Finish/Coating | TiAlN |
| Cutter Diameter | 8.0mm |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | Slot Drill |
| Overall Length | 69.0mm |
| Material Grade | M42 |
| Length Type | Regular |
| Coolant Delivery | External |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| Series | 6 |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Product Type | Slot Drills |
| Shank Diameter | 10.0mm |
| Cutter Style | Square End |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Flute Length | 19.0mm |
