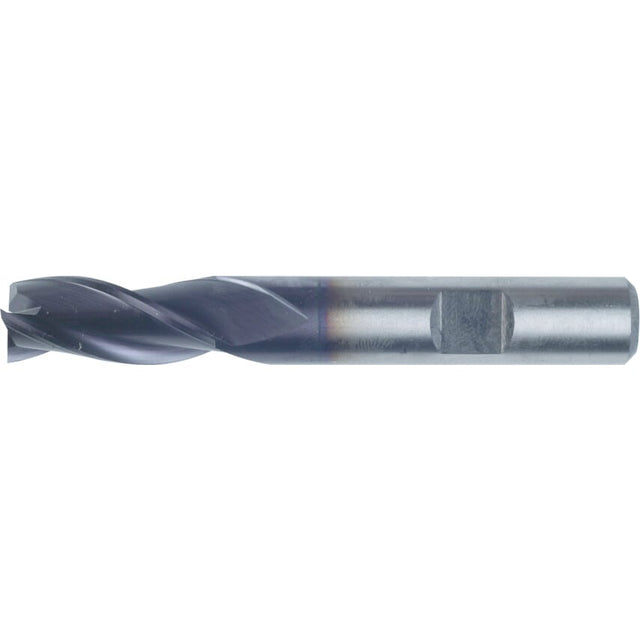

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Cutter Style | Square End |
| Overall Length | 52.0mm |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Series | 06 |
| Cutter Diameter Tolerance | e8 |
| Cutter Diameter | 3.0mm |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| Product Type | Slot Drills |
| Flute Length | 8.0mm |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Diameter | 6.0mm |
| Finish/Coating | TiAlN |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
