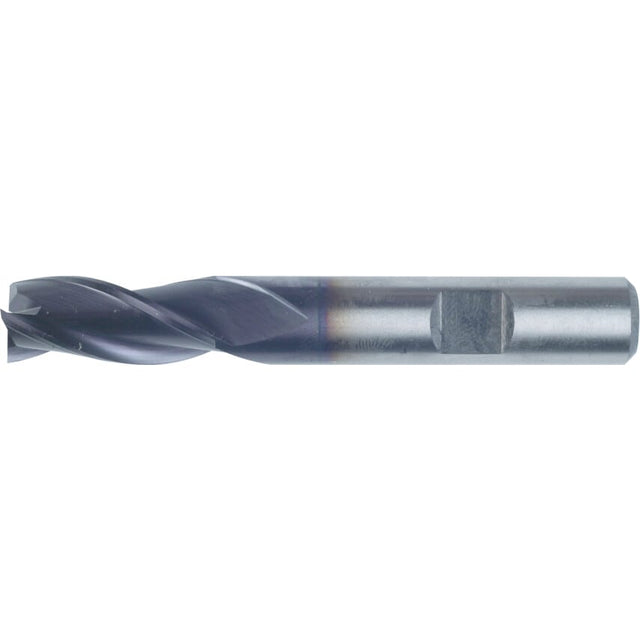

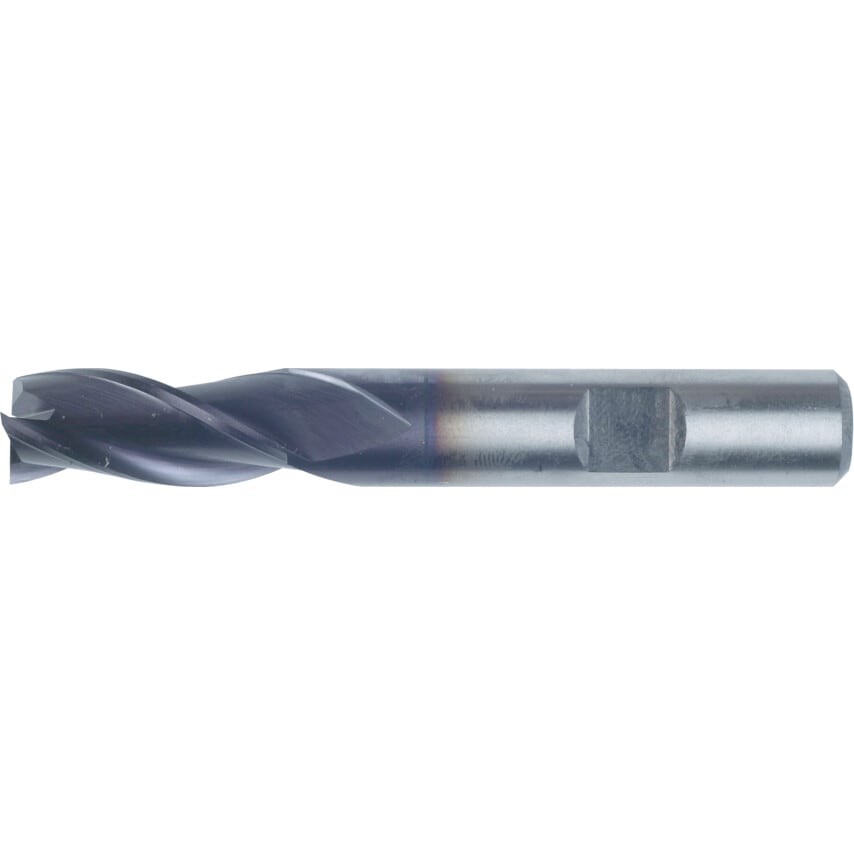

Series 06 - Regular Series, TiALN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| System of Measurement | Metric |
| Overall Length | 72.0mm |
| Cutter Diameter | 10.0mm |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Milling Cutter Type | Slot Drill |
| Cutter Diameter Tolerance | e8 |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Flute Length | 22.0mm |
| Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Length Type | Regular |
| Shank Diameter | 10.0mm |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Standards Met | DIN 844 | DIN 1835B |
| Series | 6 |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| Shank Type | Weldon Flat |
