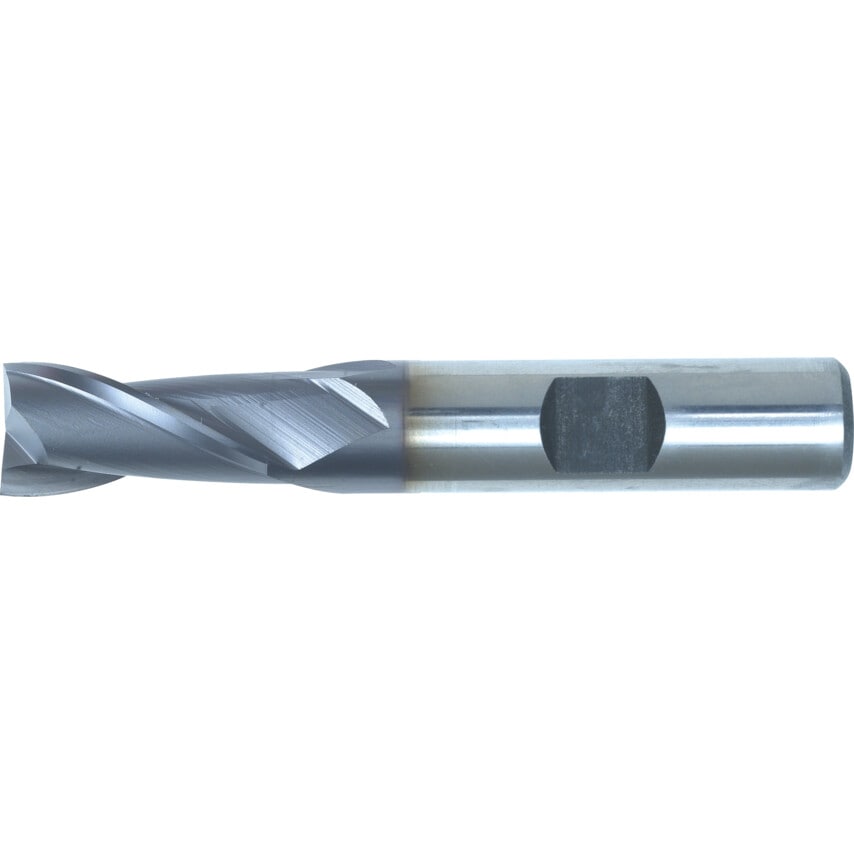

Series 02 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Finish/Coating | TiCN |
| Material | Cobalt High Speed Steel |
| Shank Type | Weldon Flat |
| Flute Length | 13.0mm |
| Number of Flutes | 2 |
| Standards Met | DIN 844 | DIN 1835B |
| Plunge Type | Centre Cutting |
| Shank Diameter | 6.0mm |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Square End |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Cutter Diameter | 6.0mm |
| Cutter Diameter Tolerance | e8 |
| Series | 2 |
| End Mill Type | Slot Drill |
| Length Type | Regular |
| System of Measurement | Metric |
| Overall Length | 57.0mm |
| Flute Type | Helical |
