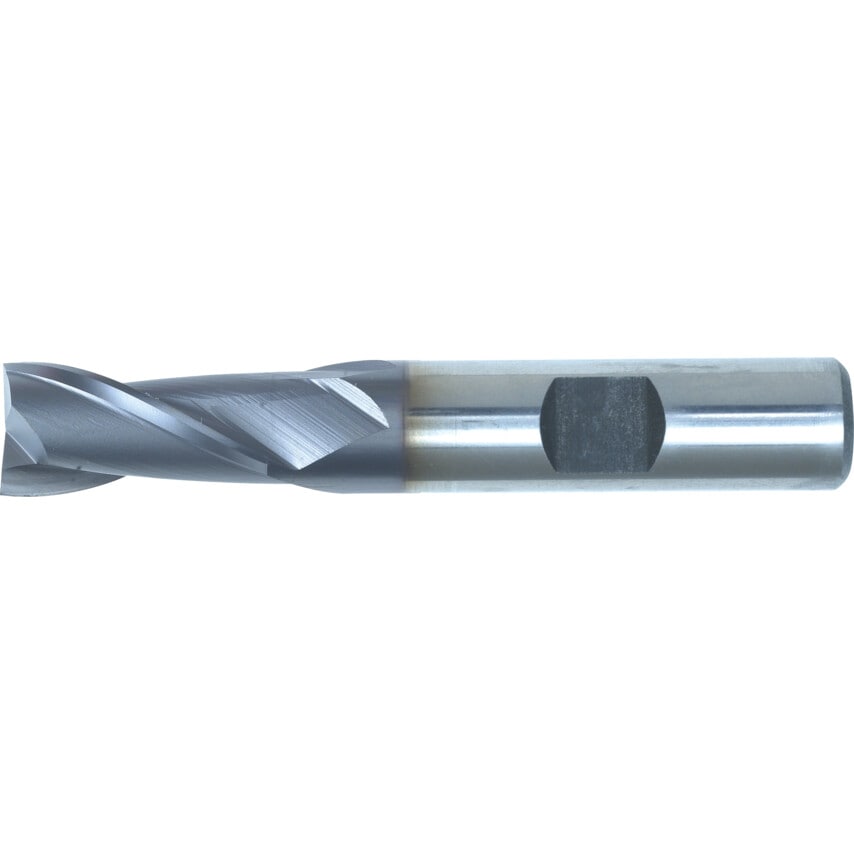

Series 02 - Regular Series, TiCN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Regular |
| Number of Flutes | 2 |
| Cutter Diameter | 12.0mm |
| Cutter Diameter Tolerance | e8 |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Flute Length | 26.0mm |
| System of Measurement | Metric |
| Overall Length | 83.0mm |
| Cutter Style | Square End |
| Standards Met | DIN 844 | DIN 1835B |
| Product Type | Slot Drills |
| Series | 2 |
| Shank Diameter | 12.0mm |
| Material Grade | M42 |
| Finish/Coating | TiCN |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
