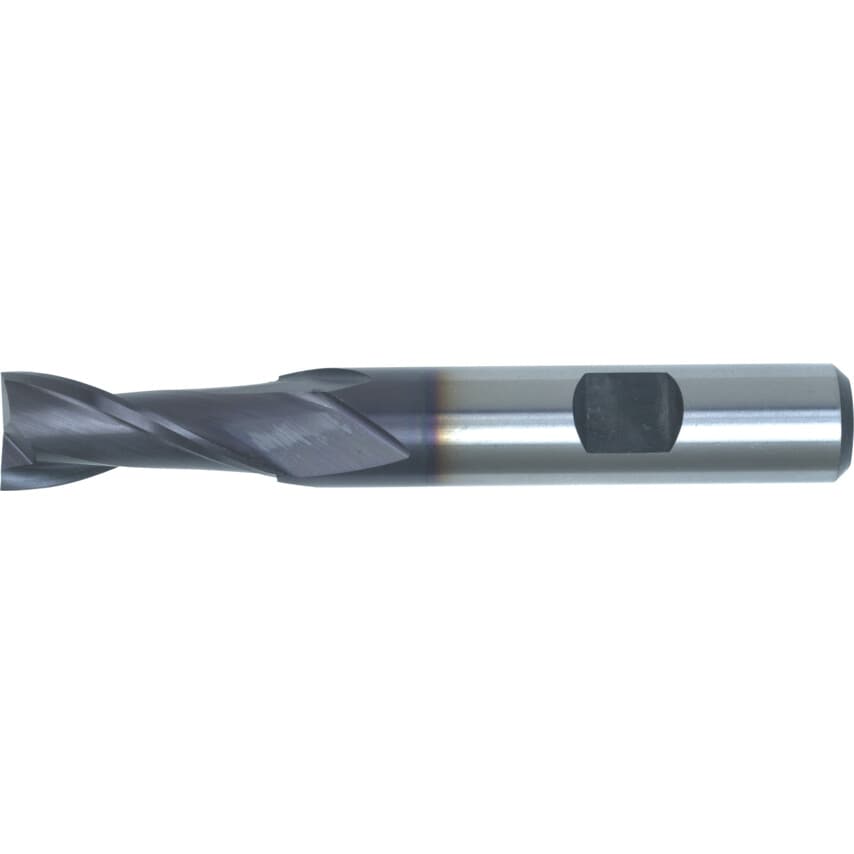

Series 02 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Finish/Coating | TiAlN |
| Shank Diameter | 6.0mm |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Cutter Style | Square End |
| Flute Type | Helical |
| Material Grade | M42 |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Number of Flutes | 2 |
| Series | 2 |
| Coolant Delivery | External |
| Length Type | Regular |
| Overall Length | 57.0mm |
| Material | Cobalt High Speed Steel |
| Cutter Diameter | 6.0mm |
| Shank Diameter Tolerance | H6 |
| Flute Length | 13.0mm |
| Standards Met | DIN 844 | DIN 1835B |
| Product Type | Slot Drills |
