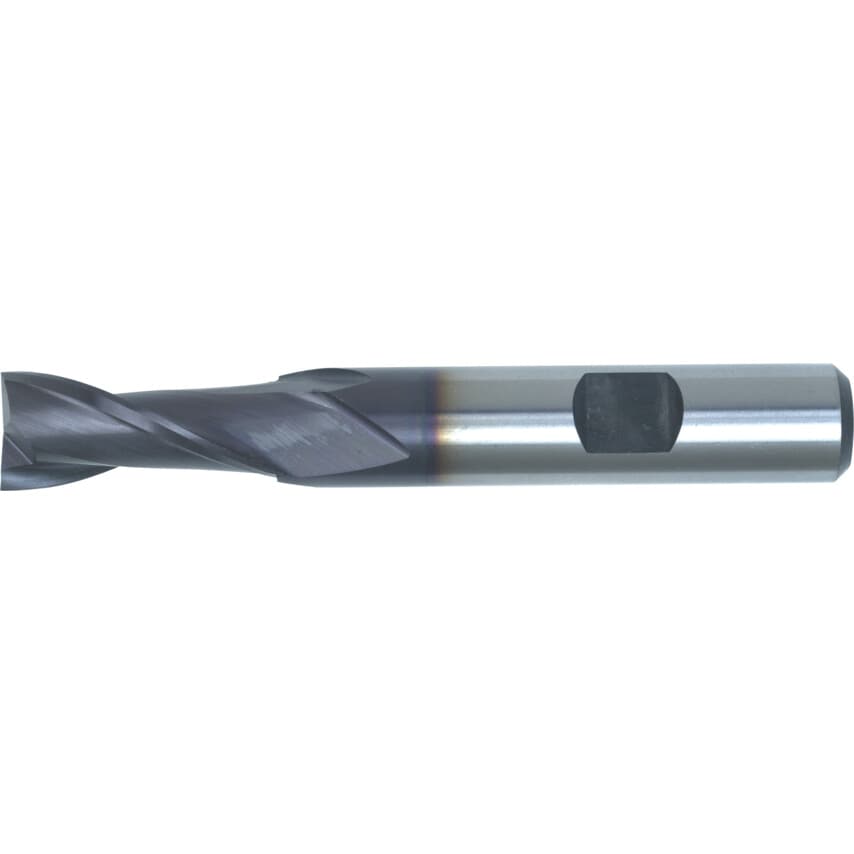

Series 02 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Overall Length | 92.0mm |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| Shank Diameter | 16.0mm |
| Cutting Direction | Right Hand |
| Standards Met | DIN 844 | DIN 1835B |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Flute Type | Helical |
| Finish/Coating | TiAlN |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Material Grade | M42 |
| End Mill Type | Slot Drill |
| Shank Type | Weldon Flat |
| Material | Cobalt High Speed Steel |
| Flute Length | 32.0mm |
| Cutter Diameter | 16.0mm |
| Series | 2 |
| Cutter Diameter Tolerance | e8 |
| Cutter Style | Square End |
