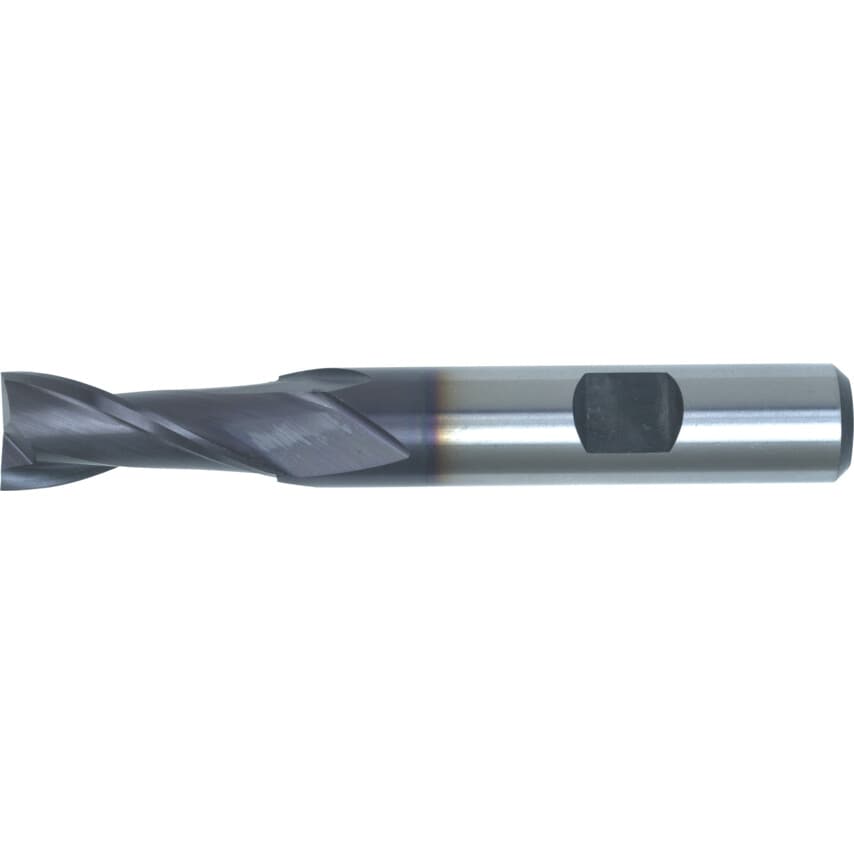

Series 02 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Finish/Coating | TiAlN |
| Overall Length | 83.0mm |
| Flute Type | Helical |
| Product Type | Slot Drills |
| Shank Diameter | 12.0mm |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Cutter Style | Square End |
| Series | 2 |
| Number of Flutes | 2 |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 12.0mm |
| Flute Length | 26.0mm |
| System of Measurement | Metric |
| Standards Met | DIN 844 | DIN 1835B |
| End Mill Type | Slot Drill |
| Material | Cobalt High Speed Steel |
| Milling Cutter Type | Slot Drill |
