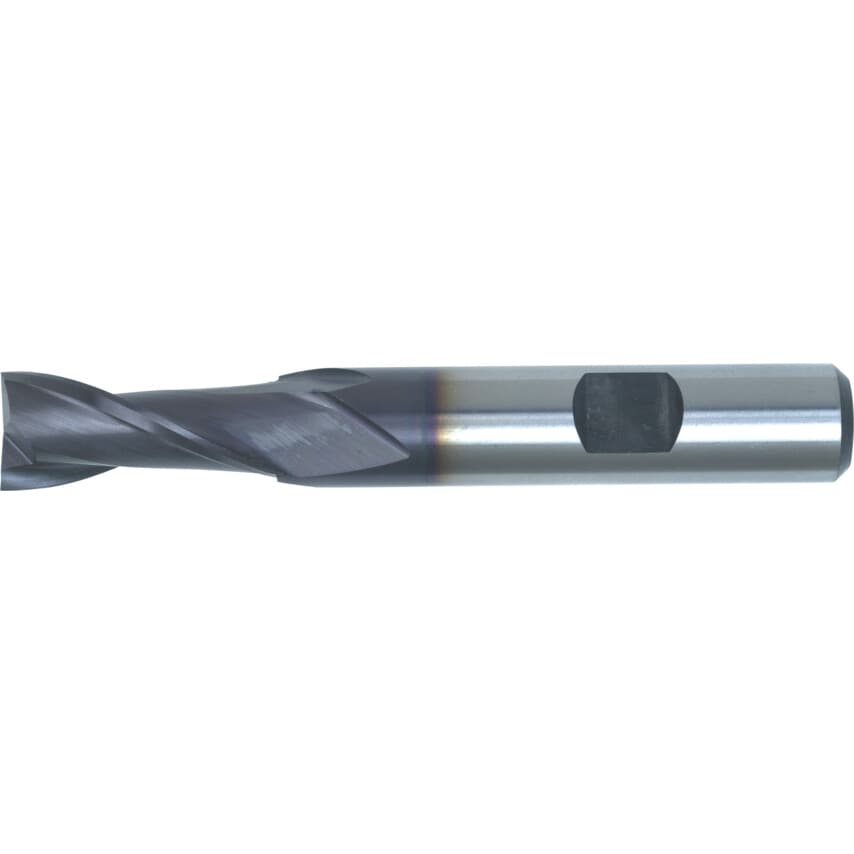

Series 02 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 20.0mm |
| Coolant Delivery | External |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN |
| System of Measurement | Metric |
| Flute Length | 38.0mm |
| Plunge Type | Centre Cutting |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Number of Flutes | 2 |
| Flute Type | Helical |
| Series | 2 |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | Slot Drill |
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Overall Length | 104.0mm |
| Material | Cobalt High Speed Steel |
| Shank Diameter | 20.0mm |
