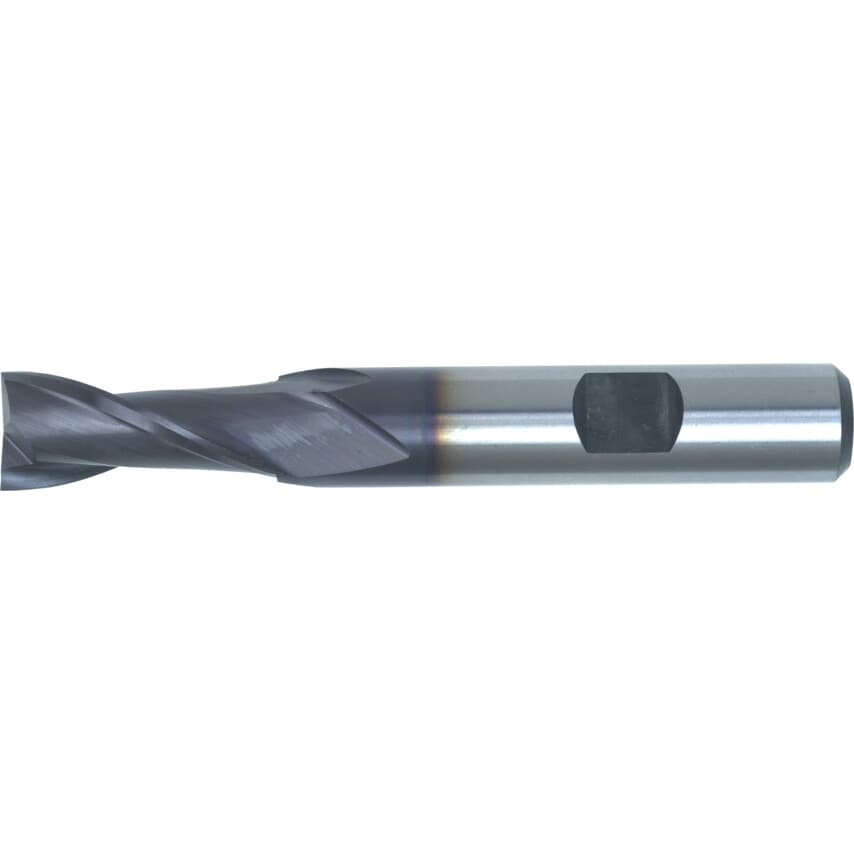

Series 02 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| End Mill Type | Slot Drill |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835B |
| Cutter Diameter | 5.0mm |
| Finish/Coating | TiAlN |
| Cutter Diameter Tolerance | e8 |
| Material | Cobalt High Speed Steel |
| Flute Length | 13.0mm |
| Shank Type | Weldon Flat |
| Shank Diameter | 6.0mm |
| Number of Flutes | 2 |
| Product Type | Slot Drills |
| Flute Type | Helical |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| Milling Cutter Type | Slot Drill |
| Length Type | Regular |
| Overall Length | 57.0mm |
| Series | 2 |
