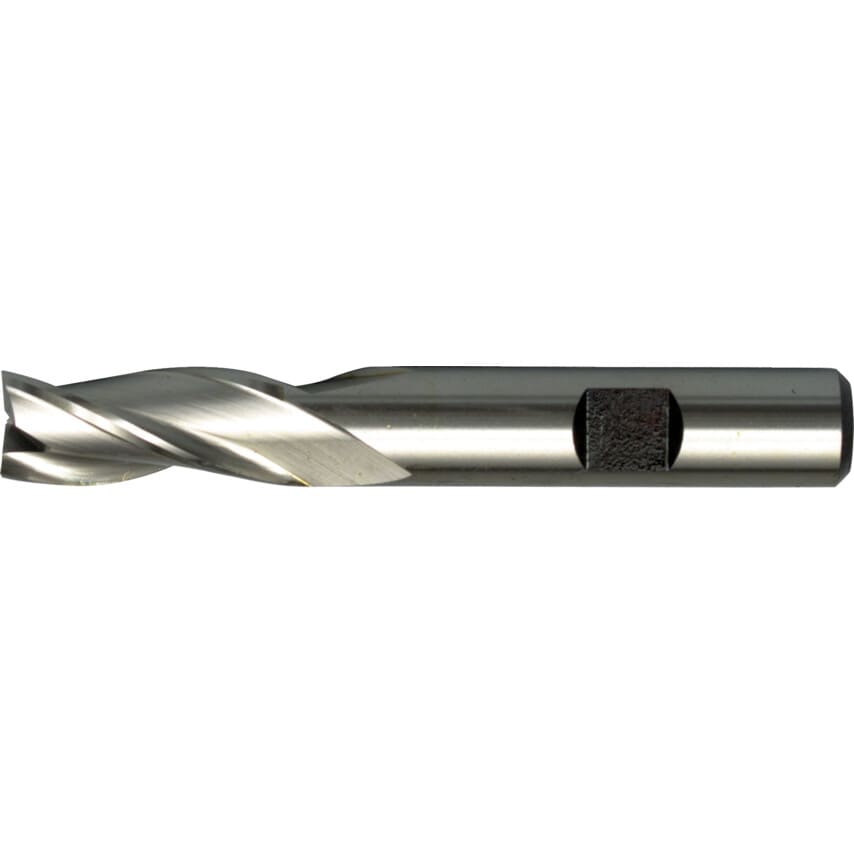

SDH-3WR HSS-Co 8%
Series 06 - Regular Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material Grade | M42 |
| Cutter Diameter | 12.0mm |
| Flute Length | 22.0mm |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Shank Diameter | 10.0mm |
| Series | 6 |
| Material | Cobalt High Speed Steel |
| Overall Length | 79.0mm |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Product Type | Slot Drills |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835B |
| Length Type | Regular |
| Number of Flutes | 3 |
| End Mill Type | Slot Drill |
| Cutter Style | Square End |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
