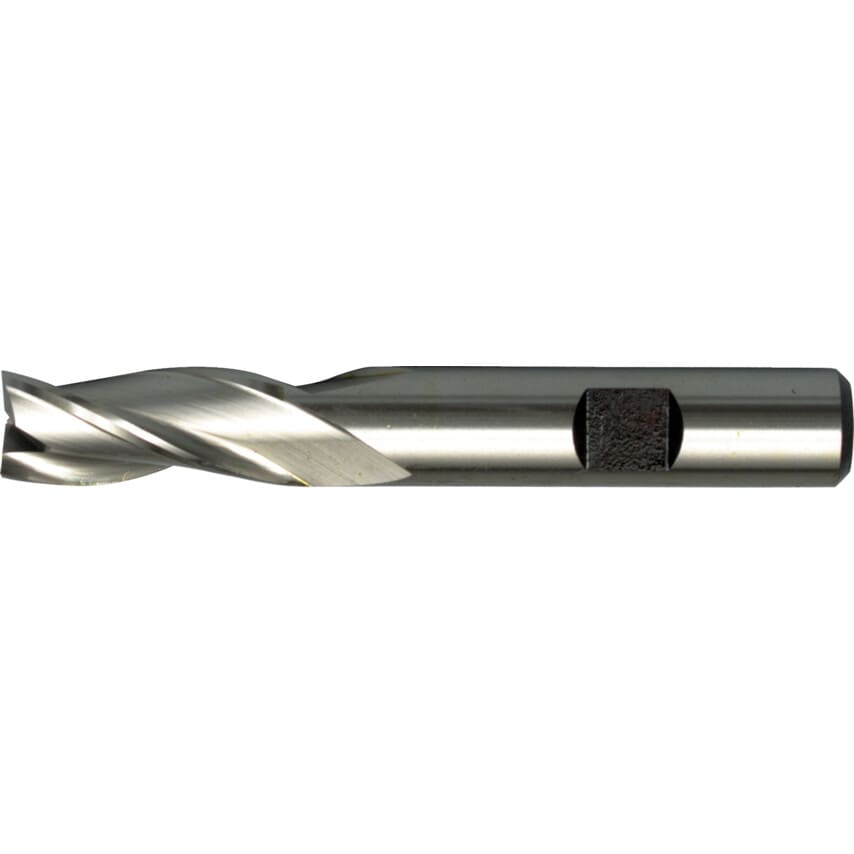

SDH-3WR HSS-Co 8%
Series 06 - Regular Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Plunge Type | Centre Cutting |
| Cutter Diameter | 5.0mm |
| Shank Diameter | 6.0mm |
| Cutter Diameter Tolerance | e8 |
| Product Type | Slot Drills |
| Standards Met | DIN 844 | DIN 1835B |
| Material Grade | M42 |
| Shank Type | Weldon Flat |
| Finish/Coating | Uncoated |
| Cutter Style | Square End |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Overall Length | 57.0mm |
| Series | 6 |
| End Mill Type | Slot Drill |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Flute Length | 13.0mm |
| Milling Cutter Type | Slot Drill |
