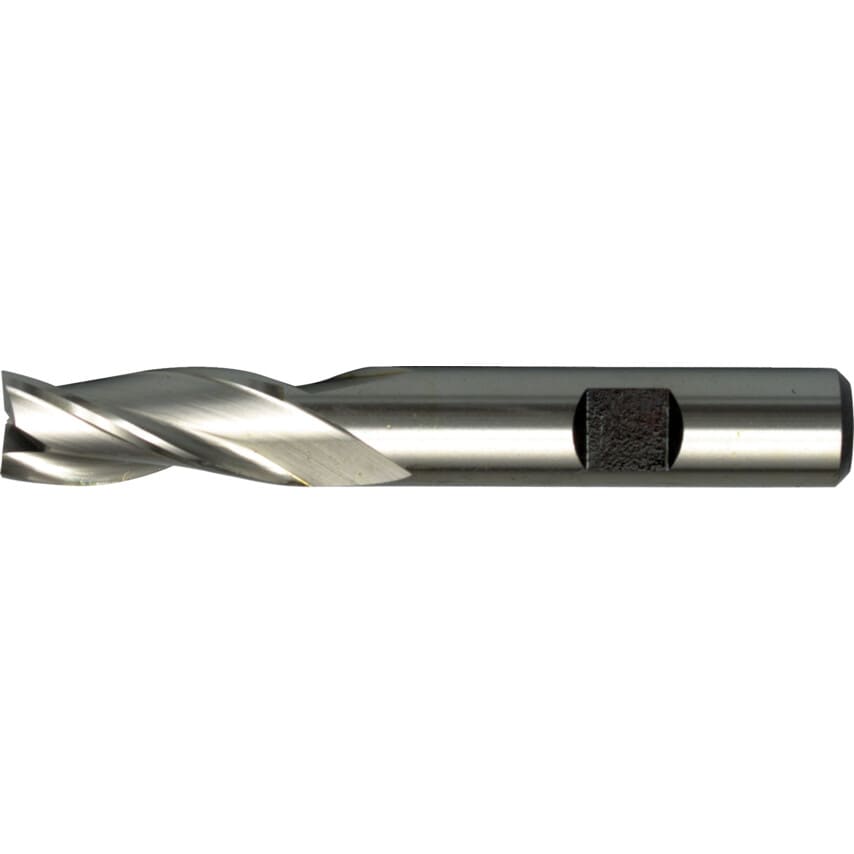

SDH-3WR HSS-Co 8%
Series 06 - Regular Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Flute Type | Helical |
| Shank Diameter | 6.0mm |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Flute Length | 13.0mm |
| Material Grade | M42 |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Type | Weldon Flat |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Finish/Coating | Uncoated |
| Cutter Diameter Tolerance | e8 |
| Number of Flutes | 3 |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Overall Length | 57.0mm |
| Cutter Style | Square End |
| Series | 6 |
| Material | Cobalt High Speed Steel |
| Cutter Diameter | 6.0mm |
