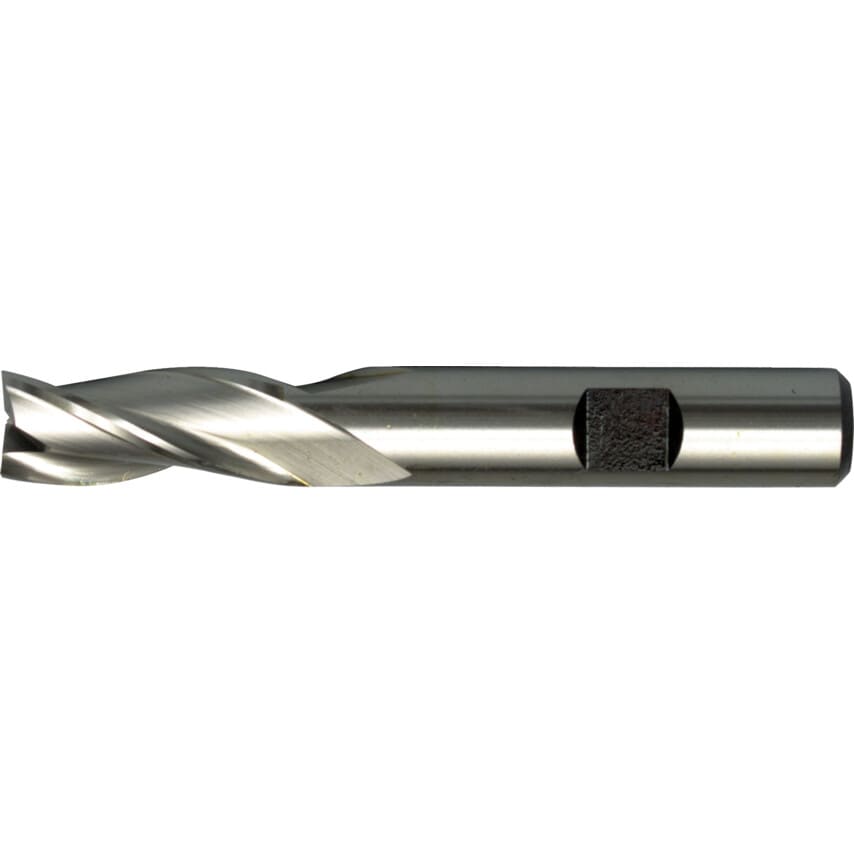

SDH-3WR HSS-Co 8%
Series 06 - Regular Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Product Type | Slot Drills |
| Cutter Diameter | 3.0mm |
| Cutter Style | Square End |
| Shank Type | Weldon Flat |
| Length Type | Regular |
| Series | 6 |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Flute Length | 8.0mm |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | e8 |
| Overall Length | 52.0mm |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Shank Diameter | 6.0mm |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Material Grade | M42 |
| Standards Met | DIN 844 | DIN 1835B |
| End Mill Type | Slot Drill |
