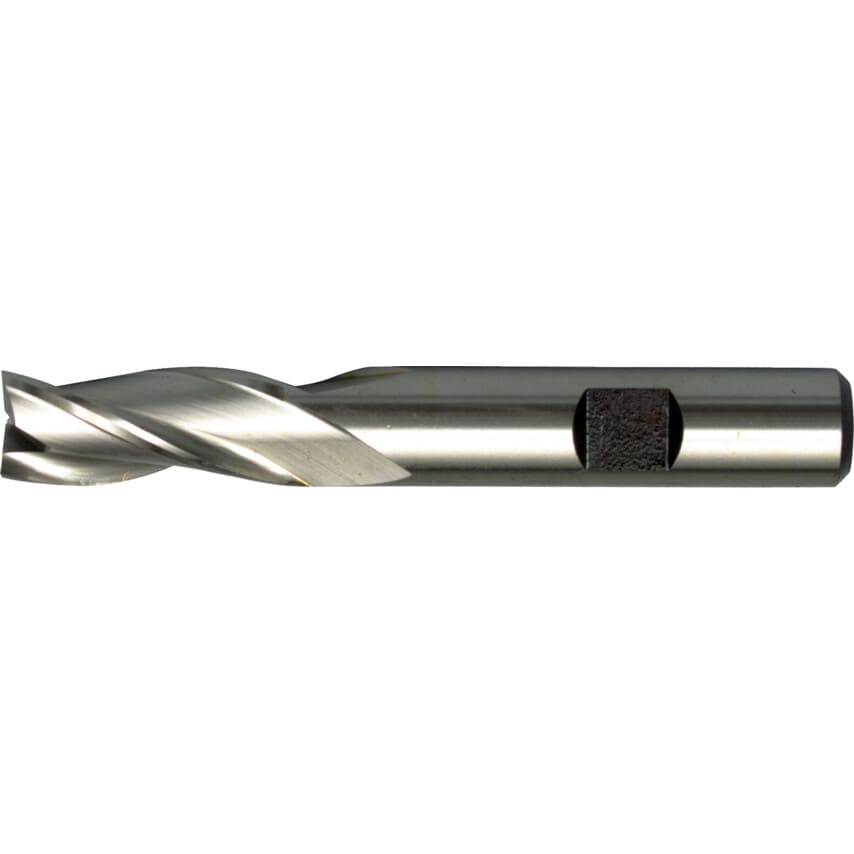

SDH-3WR HSS-Co 8%
Series 06 - Regular Series
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Standards Met | DIN 844 | DIN 1835B |
| Finish/Coating | Uncoated |
| Series | 6 |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Flute Type | Helical |
| Length Type | Regular |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| End Mill Type | Slot Drill |
| Shank Diameter | 12.0mm |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Plunge Type | Centre Cutting |
| Overall Length | 83.0mm |
| Milling Cutter Type | Slot Drill |
| Flute Length | 26.0mm |
| Cutter Diameter | 14.0mm |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Number of Flutes | 3 |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
