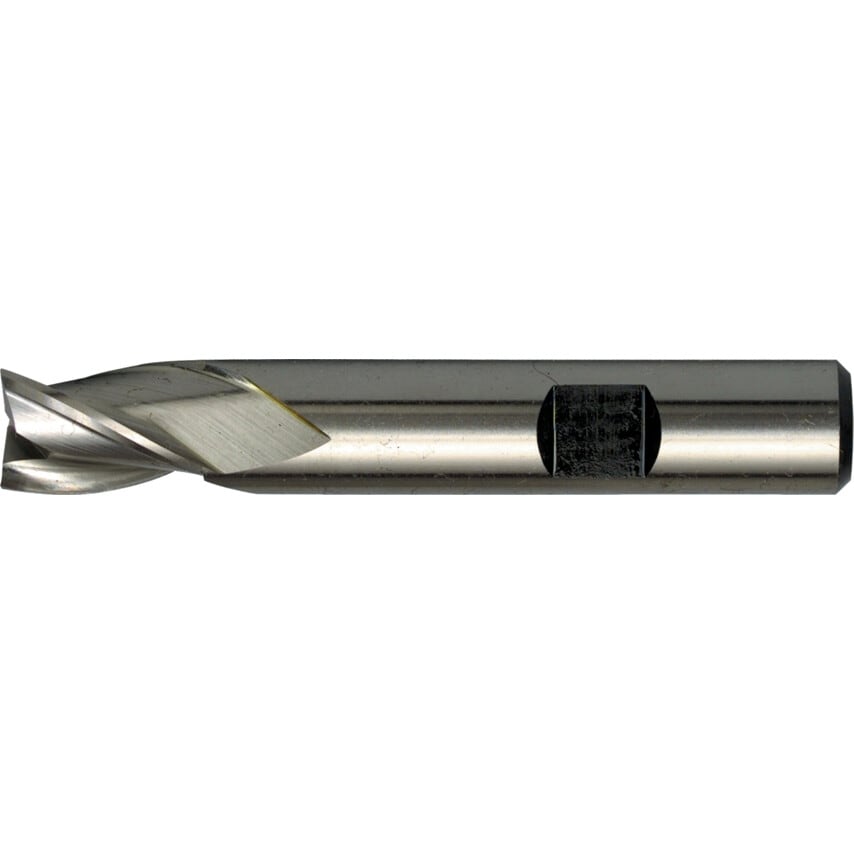

Series 06 - Regular Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material | Cobalt High Speed Steel |
| Series | 06 |
| Cutter Style | Square End |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Shank Diameter | 12.0mm |
| Coolant Delivery | External |
| Product Type | Slot Drills |
| Shank Diameter Tolerance | H6 |
| End Mill Type | Slot Drill |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Flute Length | 22.0mm |
| Cutter Diameter | 11.0mm |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Type | Weldon Flat |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Finish/Coating | TiCN |
| Cutter Diameter Tolerance | e8 |
| Overall Length | 79.0mm |
