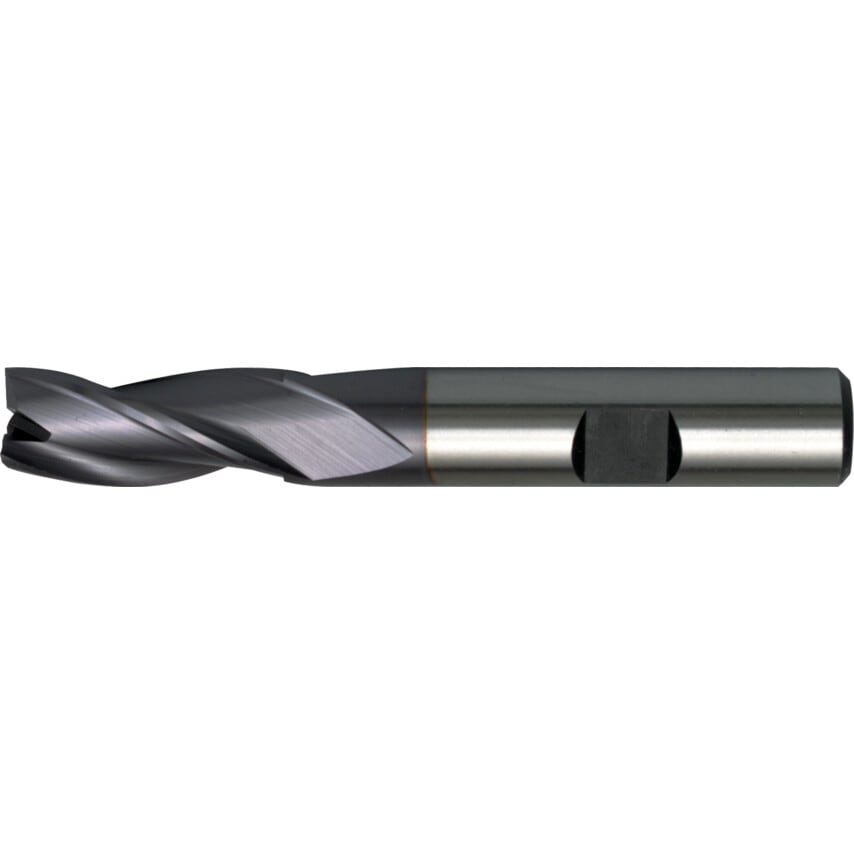

Series 06 - Regular Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Style | Square End |
| Shank Diameter | 6.0mm |
| Flute Type | Helical |
| Series | 6 |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Flute Length | 11.0mm |
| Shank Type | Weldon Flat |
| Overall Length | 55.0mm |
| Cutter Diameter Tolerance | e8 |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Standards Met | DIN 844 | DIN 1835B |
| Finish/Coating | TiCN |
| Plunge Type | Centre Cutting |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Diameter | 4.0mm |
