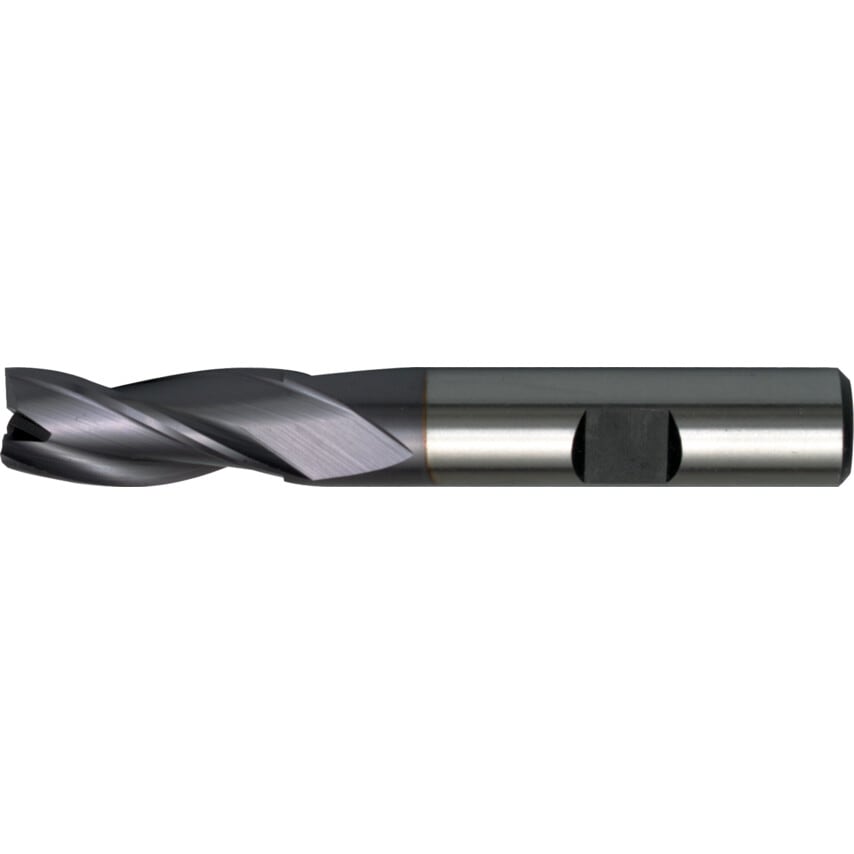

Series 06 - Regular Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Regular |
| Overall Length | 92.0mm |
| Milling Cutter Type | Slot Drill |
| Series | 6 |
| Finish/Coating | TiCN |
| Cutter Diameter | 16.0mm |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 3 |
| Standards Met | DIN 844 | DIN 1835B |
| Material Grade | M42 |
| End Mill Type | Slot Drill |
| Shank Diameter | 16.0mm |
| Cutter Diameter Tolerance | e8 |
| Flute Length | 32.0mm |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Product Type | Slot Drills |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
