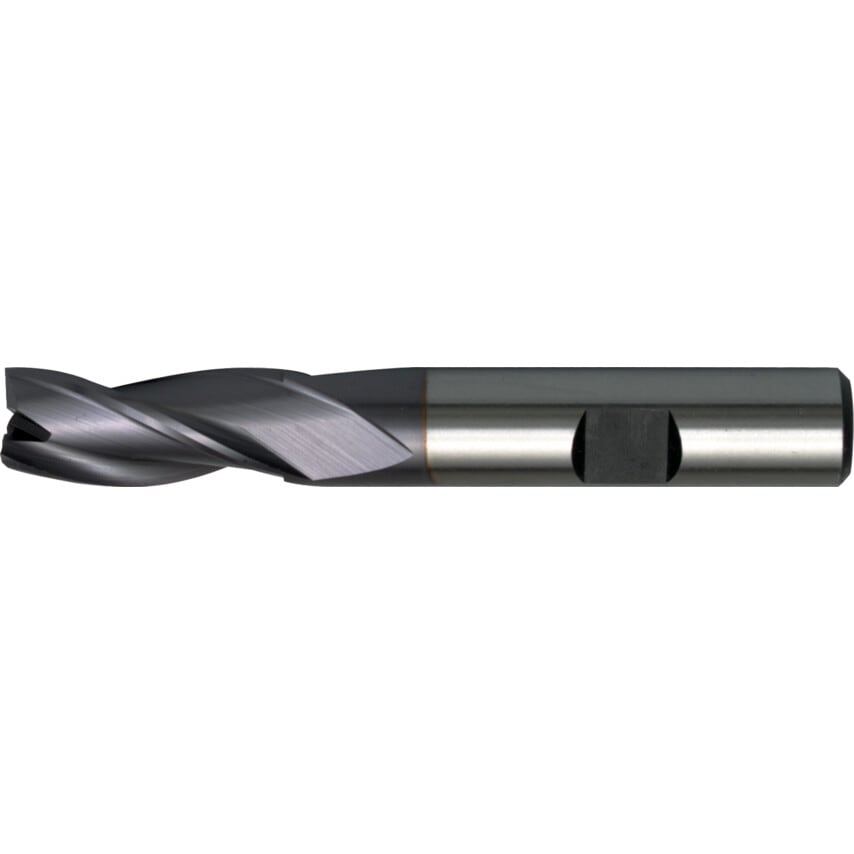

Series 06 - Regular Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material Grade | M42 |
| Cutter Diameter | 8.0mm |
| Material | Cobalt High Speed Steel |
| Finish/Coating | TiCN |
| Flute Type | Helical |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Diameter | 10.0mm |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Flute Length | 19.0mm |
| Cutter Diameter Tolerance | e8 |
| Series | 6 |
| Product Type | Slot Drills |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Overall Length | 69.0mm |
| Length Type | Regular |
| Shank Type | Weldon Flat |
| System of Measurement | Metric |
