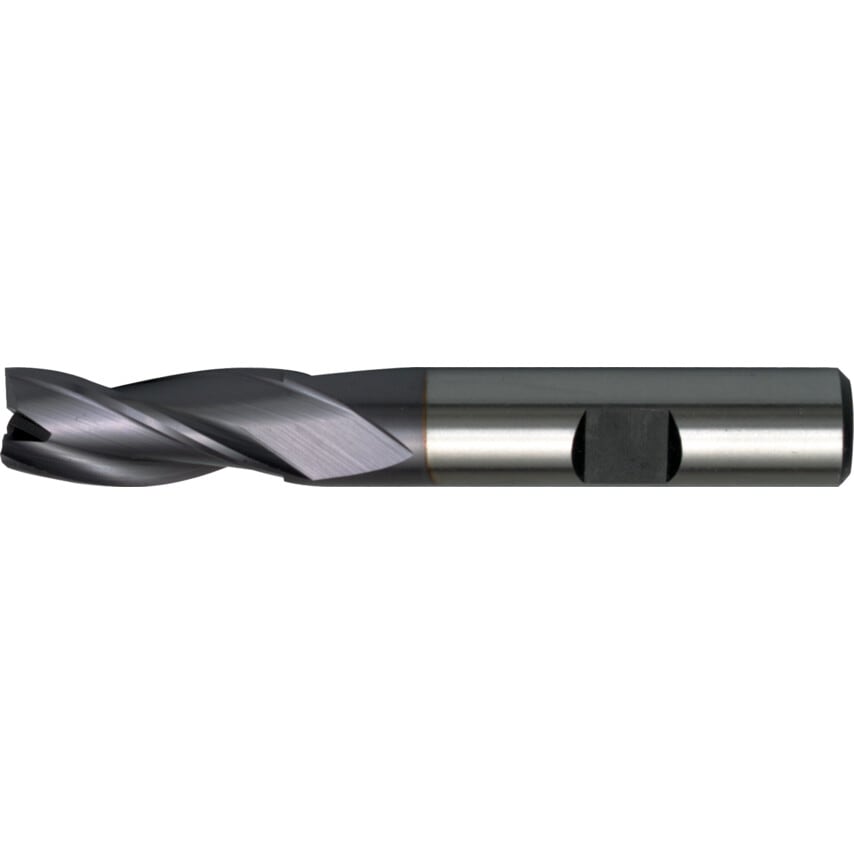

Series 06 - Regular Series, TiCN Coated
Dimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter | 6.0mm |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Shank Type | Weldon Flat |
| Overall Length | 57.0mm |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| Flute Length | 13.0mm |
| Material Grade | M42 |
| Series | 6 |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Length Type | Regular |
| Number of Flutes | 3 |
| Cutter Diameter | 5.0mm |
| Plunge Type | Centre Cutting |
| Finish/Coating | TiCN |
| Flute Type | Helical |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 844 | DIN 1835B |
| Cutter Style | Square End |
