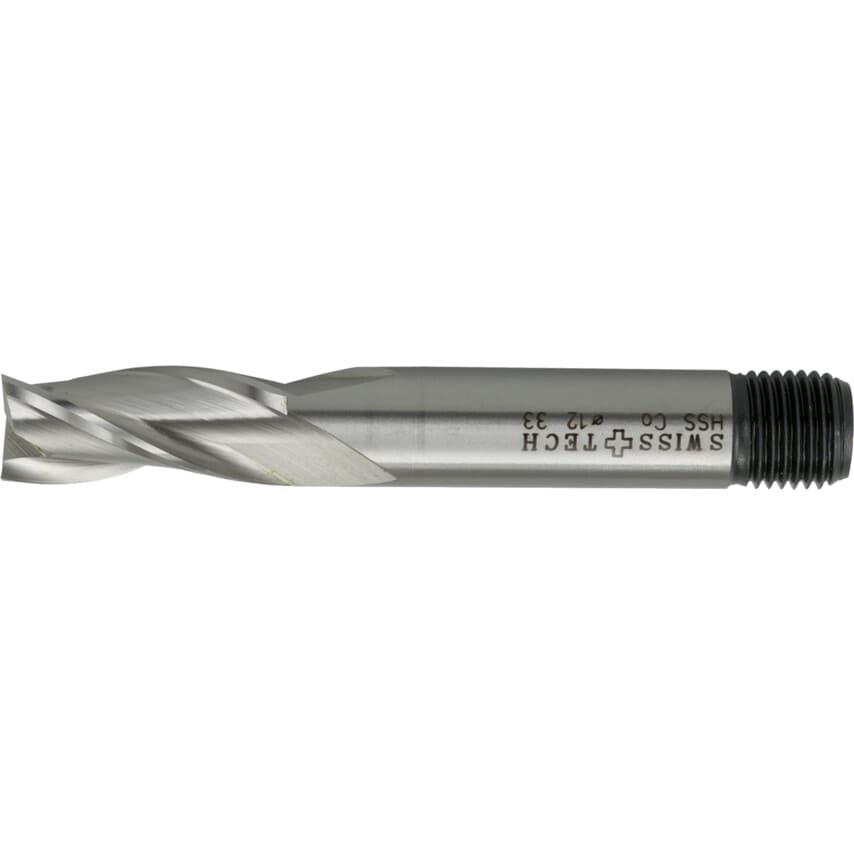

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter | 6.0mm |
| Material Grade | M42 |
| Flute Length | 13.0mm |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Shank Type | Threaded |
| Finish/Coating | Uncoated |
| Milling Cutter Type | Slot Drill |
| Overall Length | 57.0mm |
| Cutter Diameter Tolerance | e8 |
| Number of Flutes | 3 |
| Shank Diameter Tolerance | H6 |
| Length Type | Regular |
| Standards Met | DIN 844 | DIN 1835D |
| Flute Type | Helical |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Series | 33 |
| Cutter Diameter | 5.0mm |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| Plunge Type | Centre Cutting |
