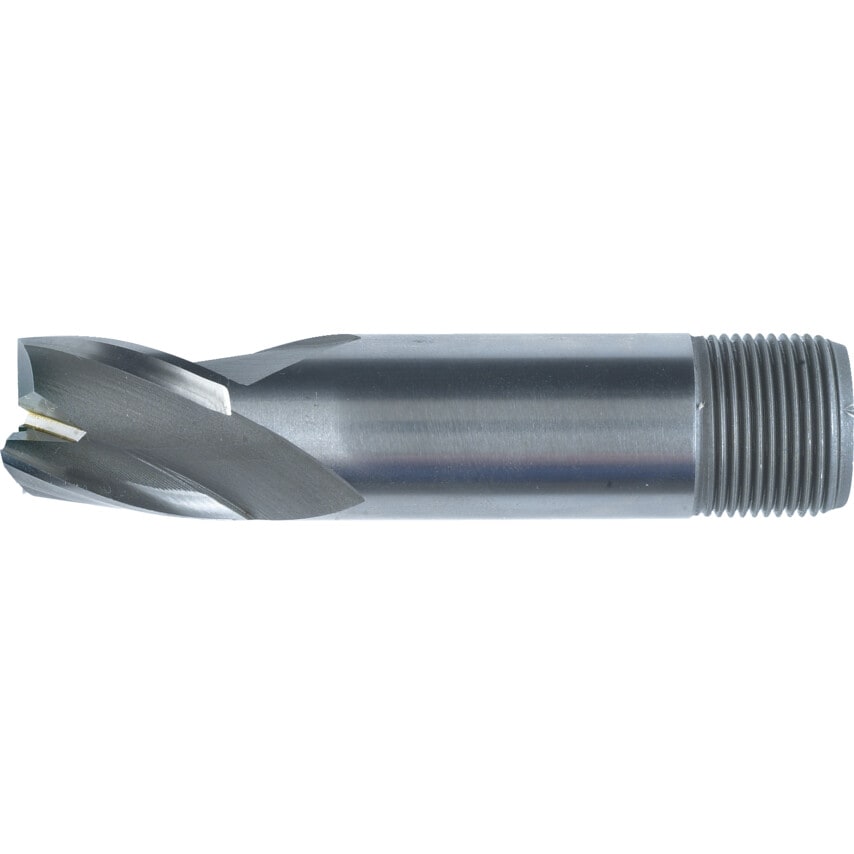

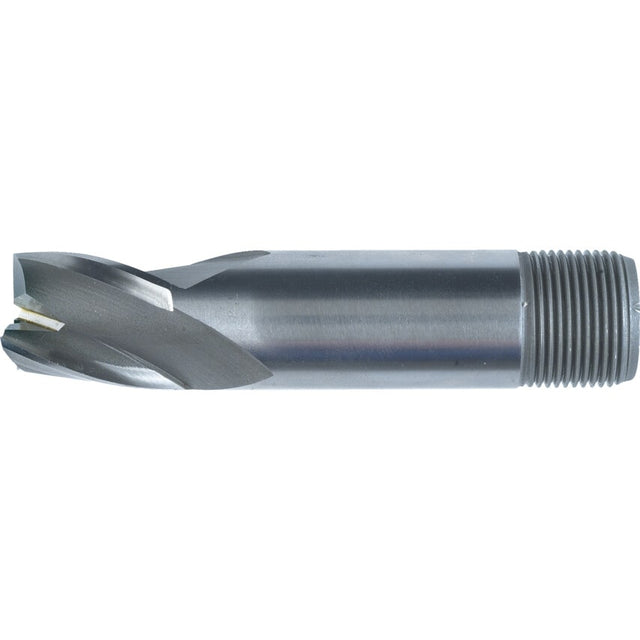

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 9.0mm |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Flute Length | 19.0mm |
| Milling Cutter Type | Slot Drill |
| Length Type | Regular |
| System of Measurement | Metric |
| Series | 33 |
| Product Type | Slot Drills |
| Cutter Style | Square End |
| Shank Diameter | 10.0mm |
| Finish/Coating | Uncoated |
| Coolant Delivery | External |
| Shank Type | Threaded |
| Flute Type | Helical |
| Standards Met | DIN 844 | DIN 1835D |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Overall Length | 69.0mm |
