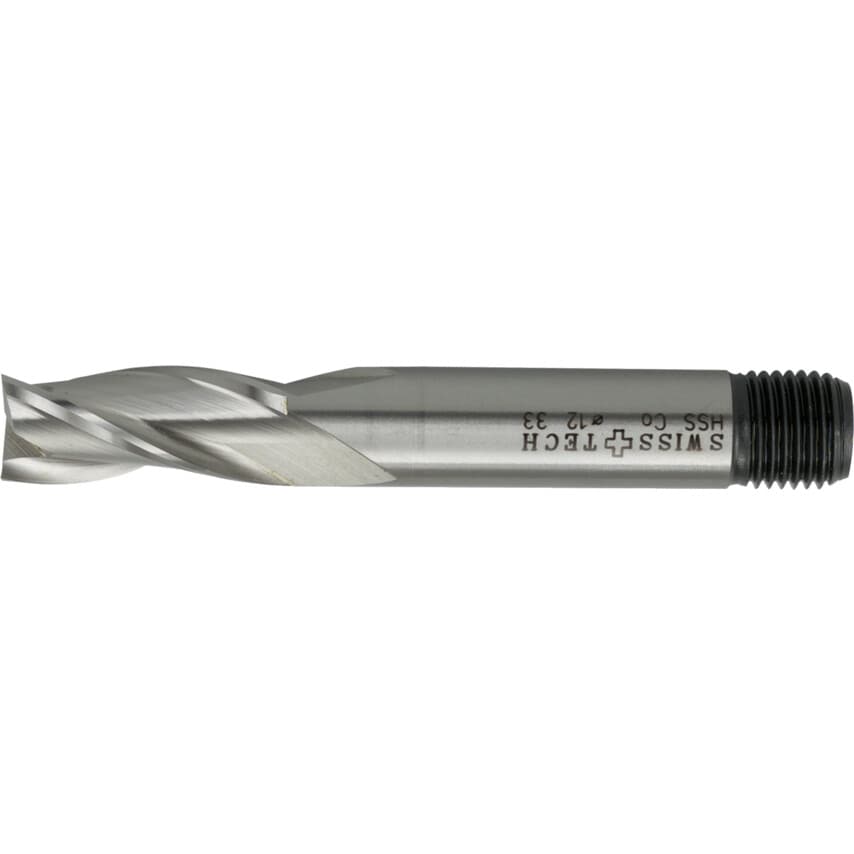

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter | 4.0mm |
| Standards Met | DIN 844 | DIN 1835D |
| Number of Flutes | 3 |
| End Mill Type | Slot Drill |
| Flute Type | Helical |
| Series | 33 |
| Coolant Delivery | External |
| Shank Diameter | 6.0mm |
| Cutter Style | Square End |
| Product Type | Slot Drills |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Material Grade | M42 |
| Cutting Direction | Right Hand |
| Overall Length | 55.0mm |
| Shank Type | Threaded |
| Milling Cutter Type | Slot Drill |
| Finish/Coating | Uncoated |
| Material | Cobalt High Speed Steel |
| Length Type | Regular |
| Flute Length | 11.0mm |
