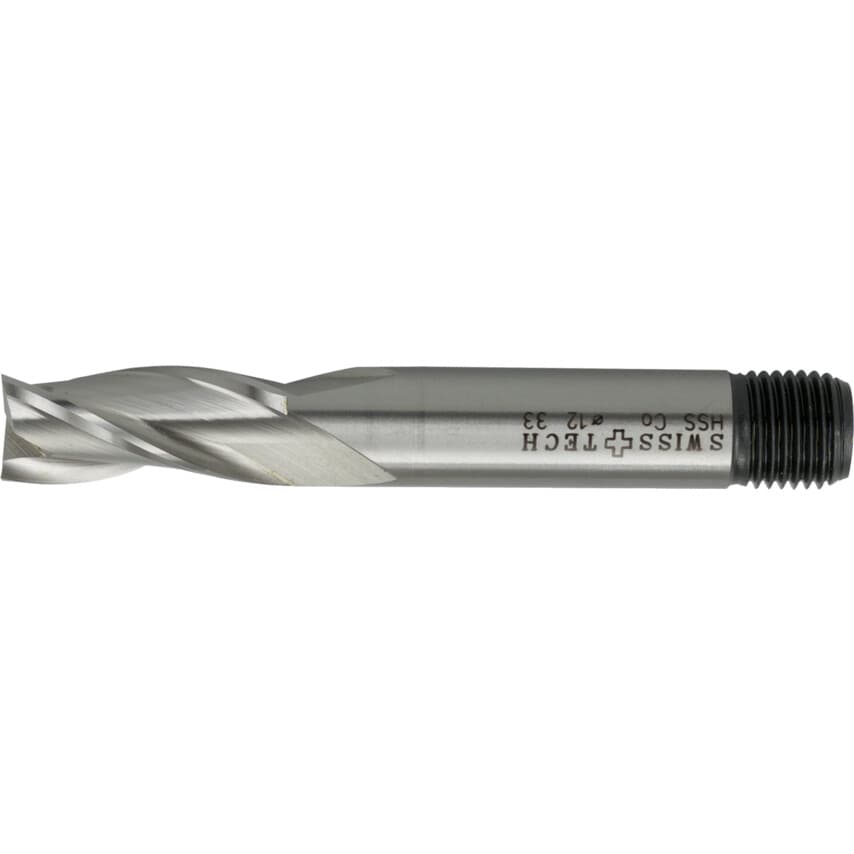

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Threaded |
| Cutter Style | Square End |
| Cutter Diameter | 14.0mm |
| Length Type | Regular |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| End Mill Type | Slot Drill |
| Product Type | Slot Drills |
| Series | 33 |
| Overall Length | 83.0mm |
| Flute Length | 26.0mm |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835D |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter | 12.0mm |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Finish/Coating | Uncoated |
| Milling Cutter Type | Slot Drill |
