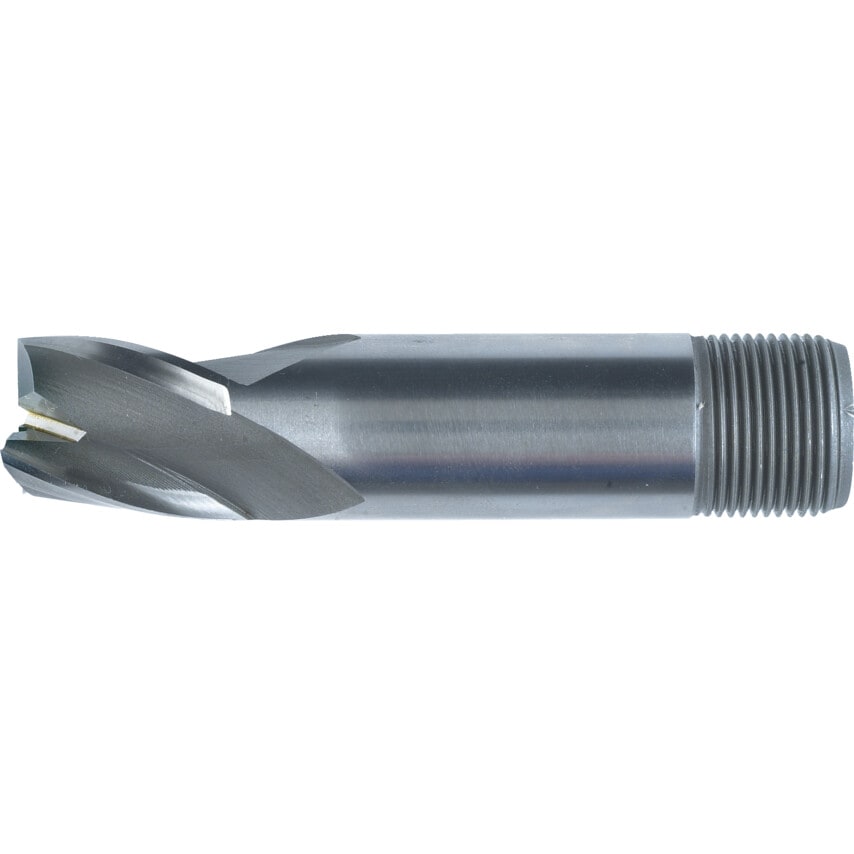

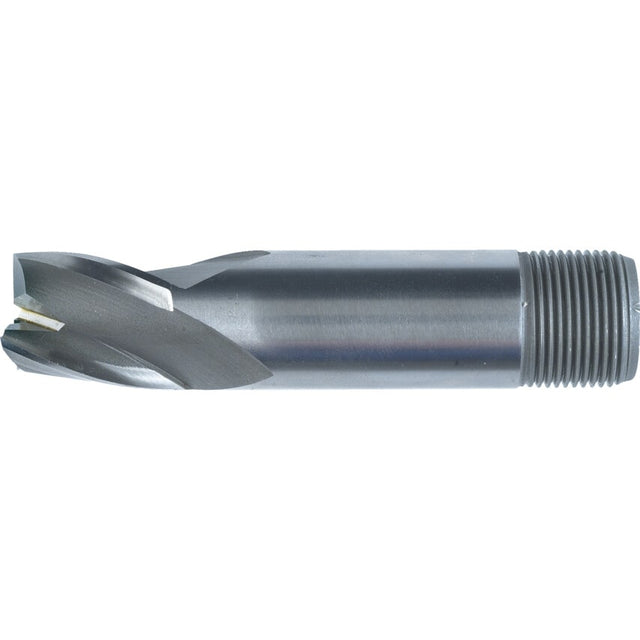

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Threaded |
| Cutter Diameter Tolerance | e8 |
| Standards Met | DIN 844 | DIN 1835D |
| Finish/Coating | Uncoated |
| Flute Length | 16.0mm |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Overall Length | 66.0mm |
| Material Grade | M42 |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Flute Type | Helical |
| Cutter Style | Square End |
| Shank Diameter | 10.0mm |
| Series | 33 |
| Coolant Delivery | External |
| Length Type | Regular |
| Number of Flutes | 3 |
| Cutter Diameter | 7.0mm |
| End Mill Type | Slot Drill |
