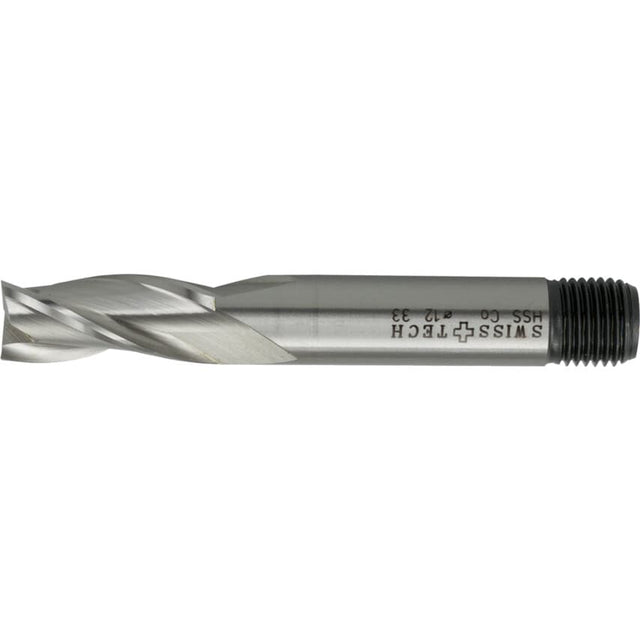

Series 33 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material | Cobalt High Speed Steel |
| Flute Type | Helical |
| Overall Length | 104.0mm |
| Material Grade | M42 |
| Milling Cutter Type | Slot Drill |
| Shank Type | Threaded |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| End Mill Type | Slot Drill |
| Cutter Diameter Tolerance | e8 |
| System of Measurement | Metric |
| Flute Length | 38.0mm |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835D |
| Shank Diameter | 20.0mm |
| Finish/Coating | Uncoated |
| Series | 33 |
| Length Type | Regular |
| Cutter Style | Square End |
| Number of Flutes | 3 |
| Cutter Diameter | 20.0mm |
| Product Type | Slot Drills |
